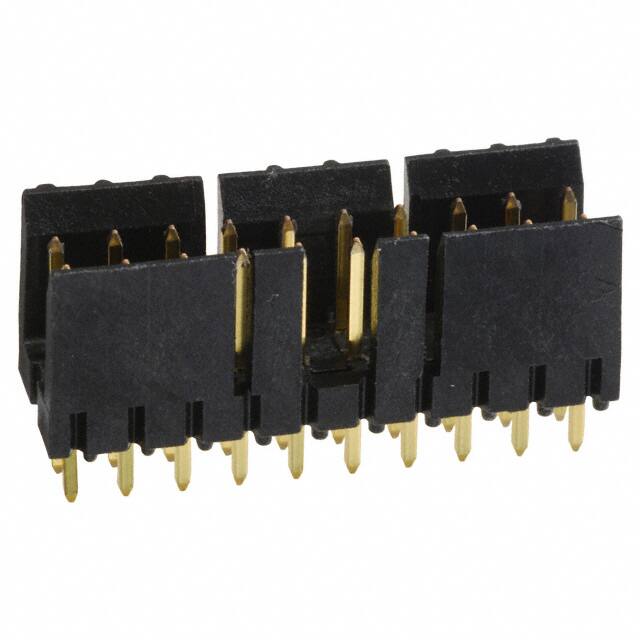

69168-120HLF

Teknik Özellikler

Fabrika Tedarik Süresi

8 Weeks

Contact Type

Male Pin

Insulation Color

Black

Depth

8.08mm

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Contact Lengthmating

0.230 5.84mm

Contact Finish Mating

Gold or Gold, GXT™

Reach Svhc

No SVHC

Housing Color

Black

Contact Finish Thickness Mating

30.0μin 0.76μm

Terminal

Solder

Sıra Sayısı

2

Contact Shape

Square

Connector Type

Header

Overall Contact Length

1.000 25.40mm

Orientation

Straight

Housing Material

Thermoplastic

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Insulation Height

0.386 9.80mm

Shrouding

Shrouded - 2 Wall

Gender

Male

Contact Length Post

0.120 3.05mm

Max Voltage Rating Ac

1kV

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Lead Length

3.05mm

RoHS Durumu

RoHS Compliant

Ambalaj

Bulk

Akım Değeri

3A

Uzunluk

25.4mm

Pitch Mating

0.100 2.54mm

Contact Plating

Gold

Montaj

Through Hole

Seri

Mini-PV™, Basics+

Fastening Type

Friction Lock

Lead Pitch

2.54mm

Pozisyon Sayısı

20
