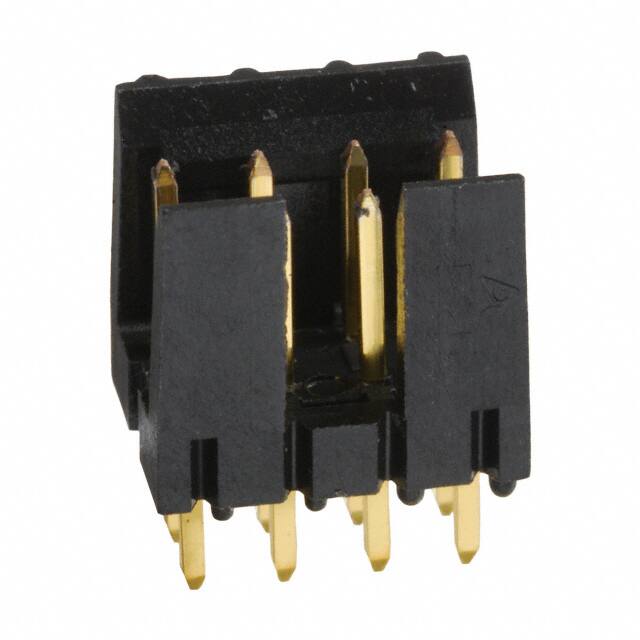

69168-108

Teknik Özellikler

Number Of Contacts

8

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polycyclohexylenedimethylene

Orientation

Straight

Pozisyon Sayısı

8

Renk

Black

Connector Type

Header

Contact Shape

Square

Seri

Mini-PV™, Basics+

Fastening Type

Friction Lock

Overall Contact Length

0.400 10.16mm

Max Voltage Rating Ac

1kV

Material Flammability Rating

UL94 V-0

Contact Length Post

0.120 3.05mm

Yayın Yılı

2012

Shrouding

Shrouded - 2 Wall

Parça Durumu

Active

Pitch

2.54mm

Gender

Male

Montaj Tipi

Through Hole

Mating Post Length

5.84mm

Nominal Gerilim

1kV

Insulation Height

0.386 9.80mm

Kurşunsuz

Contains Lead

Radyasyon Dayanımı

No

Contact Lengthmating

0.230 5.84mm

RoHS Durumu

Non-RoHS Compliant

Ambalaj

Bulk

Contact Finish Mating

Gold or Gold, GXT™

Insulation Color

Black

Depth

8.08mm

Contact Type

Male Pin

Lead Length

3.05mm

Fabrika Tedarik Süresi

8 Weeks

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Contact Plating

GXT, Gold

Sıra Sayısı

2
