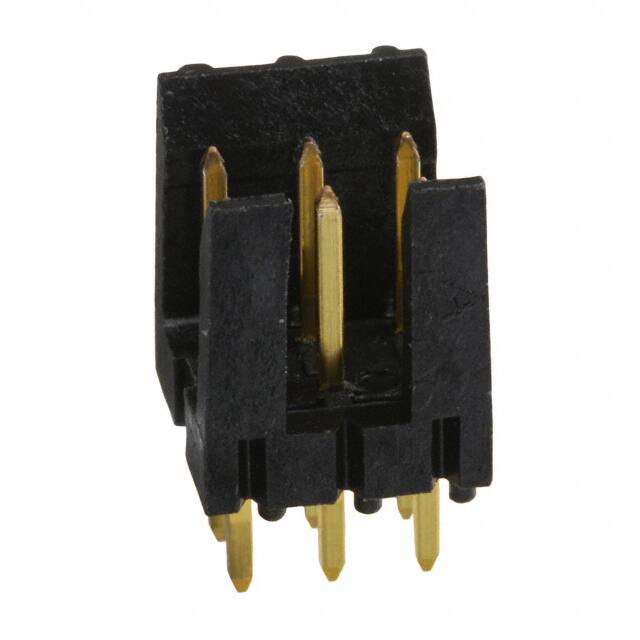

69168-106HLF

Teknik Özellikler

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Housing Material

Thermoplastic

Overall Contact Length

0.300 7.62mm

Connector Type

Header

Contact Shape

Square

Max Voltage Rating Ac

1kV

Contact Length Post

0.120 3.05mm

Gender

Male

Shrouding

Shrouded - 2 Wall

Insulation Height

0.386 9.80mm

Montaj Tipi

Through Hole

Contact Finish Mating

Gold or Gold, GXT™

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Contact Lengthmating

0.230 5.84mm

Depth

8.08mm

Insulation Color

Black

Contact Type

Male Pin

Fabrika Tedarik Süresi

8 Weeks

Sıra Sayısı

2

Contact Finish Thickness Mating

30.0μin 0.76μm

Terminal

Solder

Housing Color

Black

Reach Svhc

No SVHC

Row Spacing Mating

0.100 (2.54mm)

Number Of Contacts

6

Renk

Black

Lead Pitch

2.54mm

Pozisyon Sayısı

6

Seri

Mini-PV™, Basics+

Fastening Type

Friction Lock

Material Flammability Rating

UL94 V-0

Genişlik

7.7mm

Yayın Yılı

2008

Pitch

2.54mm

Parça Durumu

Active

Mating Post Length

5.84mm

Nominal Gerilim

1kV
