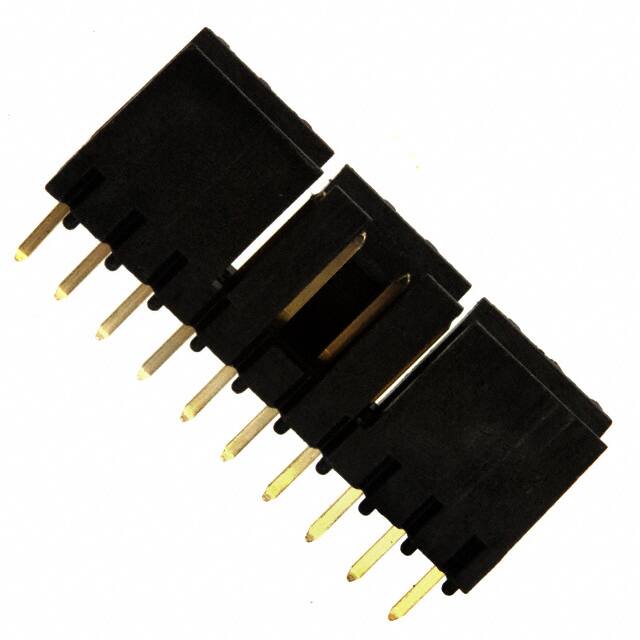

69167-110HLF

Teknik Özellikler

Shrouding

Shrouded - 2 Wall

Gender

Male

Montaj Tipi

Through Hole

Insulation Height

0.386 9.80mm

Max Voltage Rating Ac

1kV

Contact Length Post

0.120 3.05mm

Connector Type

Header

Contact Shape

Square

Overall Contact Length

0.465 11.81mm

Style

Board to Cable/Wire

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Housing Material

Thermoplastic

Sıra Sayısı

1

Housing Color

Black

Contact Finish Thickness Mating

30.0μin 0.76μm

Terminal

Solder

Contact Type

Male Pin

Fabrika Tedarik Süresi

8 Weeks

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Contact Lengthmating

0.230 5.84mm

Min. Çalışma Sıcaklığı

-40°C

Contact Finish Mating

Gold or Gold, GXT™

Insulation Color

Black

Depth

5.54mm

Pitch

2.54mm

Parça Durumu

Active

Mating Post Length

5.84mm

Nominal Gerilim

1kV

Genişlik

5.16mm

Material Flammability Rating

UL94 V-0

Lead Pitch

2.54mm

Pozisyon Sayısı

10

Renk

Black

Seri

Mini-PV™, Basics+

Fastening Type

Friction Lock

Number Of Contacts

10

Pitch Mating

0.100 2.54mm

Akım Değeri

3A
