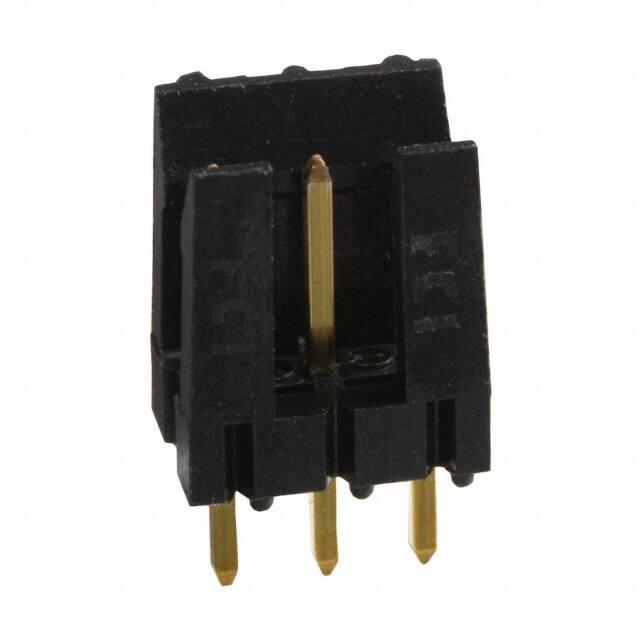

69167-103HLF

Teknik Özellikler

Yayın Yılı

2008

Genişlik

5.16mm

Material Flammability Rating

UL94 V-0

Nominal Gerilim

1kV

Mating Post Length

5.84mm

Parça Durumu

Active

Pitch

2.54mm

Number Of Contacts

3

Fastening Type

Friction Lock

Seri

Mini-PV™, Basics+

Pozisyon Sayısı

3

Renk

Black

Montaj

Through Hole

Yükseklik

9.91mm

Contact Plating

Gold

Uzunluk

40.34mm

Akım Değeri

3A

Contact Gender

Male

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

RoHS Durumu

RoHS Compliant

Contact Materials

Phosphor Bronze

Maks. Çalışma Sıcaklığı

95°C

Number Of Positions Loaded

All

Lead Length

3.05mm

Contact Length Post

0.120 3.05mm

Max Current Rating

2A

Max Voltage Rating Ac

1kV

Montaj Tipi

Through Hole

Insulation Height

0.386 9.80mm

Shrouding

Shrouded - 2 Wall

Gender

Male

Orientation

Straight

Housing Material

Thermoplastic

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Connector Type

Header

Contact Shape

Square

Overall Contact Length

0.465 11.81mm

Housing Color

Black
