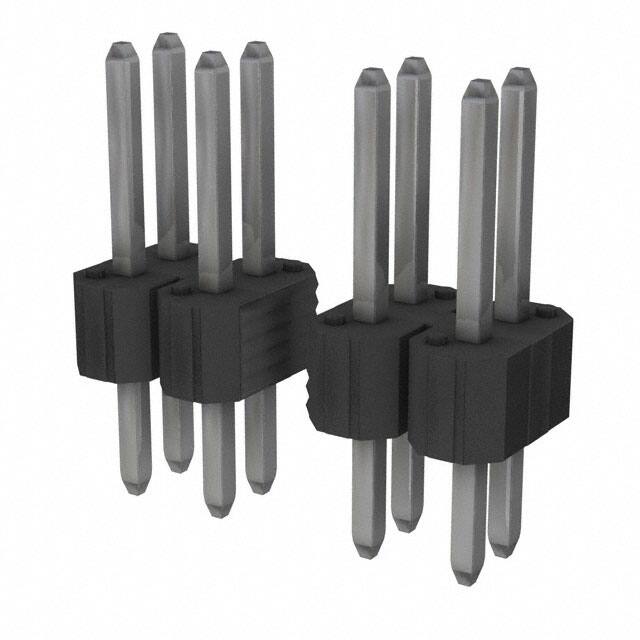

68602-426HLF

Teknik Özellikler

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Housing Color

Black

Min. Çalışma Sıcaklığı

-65°C

Connector Type

Header

Ambalaj

Bulk

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Contact Gender

Male

Lead Length

3.81mm

Contact Shape

Square

Contact Length Post

0.150 3.81mm

Housing Material

Thermoplastic

Akım Değeri

3A

Pitch Mating

0.100 2.54mm

Style

Board to Board

Shrouding

Unshrouded

Contact Type

Male Pin

Montaj

Through Hole

Contact Finish Thickness Mating

100.0μin 2.54μm

Maks. Çalışma Sıcaklığı

125°C

Nominal Gerilim

1.5kV

Insulation Height

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Post Length

5.84mm

Uzunluk

33.02mm

Orientation

Straight

Parça Durumu

Active

Fabrika Tedarik Süresi

8 Weeks

Terminal

Solder

Sıra Sayısı

2

Max Voltage Rating Ac

1.5kV

Row Spacing Mating

0.100 (2.54mm)

Overall Contact Length

0.480 12.19mm

Contact Lengthmating

0.230 5.84mm

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

26

Depth

4.83mm

Seri

BERGSTIK® II

Insulation Resistance

5GOhm
