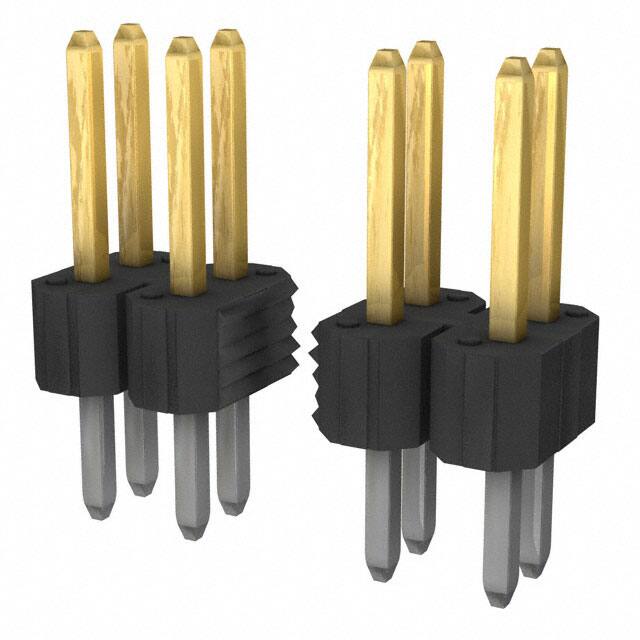

68602-116HLF

Teknik Özellikler

Contact Type

Male Pin

Yayın Yılı

2009

Montaj

Through Hole

Maks. Çalışma Sıcaklığı

125°C

Reach Svhc

No SVHC

Montaj Tipi

Through Hole

Radyasyon Dayanımı

No

Min. Çalışma Sıcaklığı

-65°C

Ambalaj

Bulk

Contact Gender

Male

Contact Length Post

0.150 3.81mm

Lead Length

3.81mm

Akım Değeri

3A

Housing Material

Thermoplastic

Renk

Black

Contact Materials

Phosphor Bronze

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Post Length

5.84mm

Orientation

Straight

Lead Pitch

2.54mm

Uzunluk

20.32mm

Terminal

Solder

Fabrika Tedarik Süresi

8 Weeks

Overall Contact Length

0.480 12.19mm

Material Flammability Rating

UL94 V-0

Contact Lengthmating

0.230 5.84mm

Flammability Rating

UL94 V-0

Shrouding

Unshrouded

Style

Board to Board

Pitch

2.54mm

Contact Finish Thickness Mating

30.0μin 0.76μm

Number Of Positions Loaded

All

Housing Color

Black

Number Of Contacts

16

Connector Type

Header

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Gold or Gold, GXT™

Gender

Male

Contact Shape

Square
