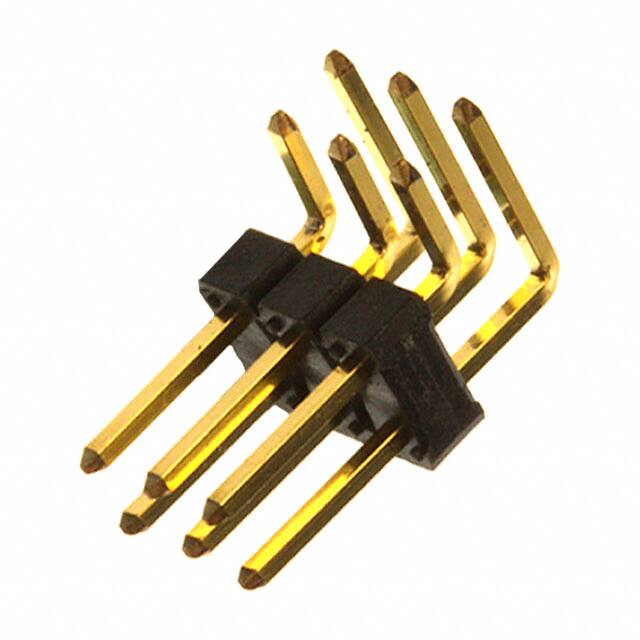

68021-206HLF

Teknik Özellikler

Insulation Color

Black

Material Flammability Rating

UL94 V-0

Lead Length

3.05mm

Max Voltage Rating Ac

1.5kV

Uzunluk

7.62mm

Contact Finish Mating

Gold or Gold, GXT™

Row Spacing Mating

0.100 (2.54mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

Parça Durumu

Active

Insulation Resistance

5GOhm

Contact Materials

Phosphor Bronze

Montaj Tipi

Through Hole, Right Angle

Contact Gender

Male

Orientation

Right Angle

Pozisyon Sayısı

6

Housing Color

Black

Fastening Type

Push-Pull

Contact Plating

Gold

Insulation Height

0.190 4.83mm

Contact Length Post

0.120 3.05mm

Seri

BERGSTIK® II

Shrouding

Unshrouded

Contact Lengthmating

0.230 5.84mm

Min. Çalışma Sıcaklığı

-65°C

Style

Board to Board

Depth

12.44mm

Contact Shape

Square

Gender

Male

Pitch

2.54mm

Yayın Yılı

2011

Housing Material

Thermoplastic

Montaj

Through Hole

Number Of Contacts

6

Renk

Black

Nominal Gerilim

1.5kV

Flammability Rating

UL94 V-0

Number Of Positions Loaded

All
