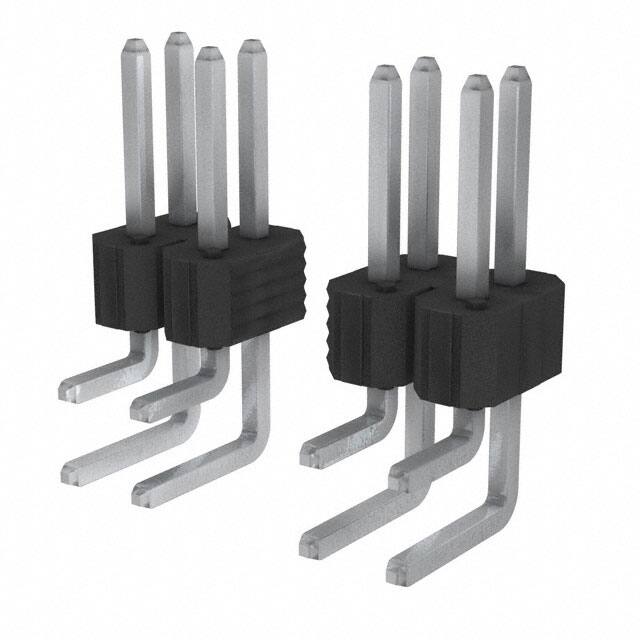

68020-472

Teknik Özellikler

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.100 (2.54mm)

Insulation Color

Black

Material Flammability Rating

UL94 V-0

Lead Length

2.41mm

Max Voltage Rating Ac

1.5kV

Uzunluk

91.44mm

Contact Materials

Phosphor Bronze

Montaj Tipi

Through Hole, Right Angle

Contact Gender

Male

Pozisyon Sayısı

72

Orientation

Right Angle

Housing Color

Black

Connector Type

Header

Pitch Mating

0.100 2.54mm

Ambalaj

Bulk

Insulation Resistance

5GOhm

Parça Durumu

Active

Style

Board to Board

Min. Çalışma Sıcaklığı

-65°C

Contact Lengthmating

0.230 5.84mm

Depth

12.44mm

Contact Shape

Square

Pitch

2.54mm

Gender

Male

Kurşunsuz

Contains Lead

Contact Plating

Tin

Fastening Type

Push-Pull

Insulation Height

0.190 4.83mm

Contact Length Post

0.095 2.41mm

Shrouding

Unshrouded

Seri

BERGSTIK® II

Terminal

Solder

RoHS Durumu

Non-RoHS Compliant

Contact Finish Thickness Mating

100.0μin 2.54μm

Akım Değeri

3A

Mating Post Length

5.84mm

Sıra Sayısı

2

Contact Type

Male Pin
