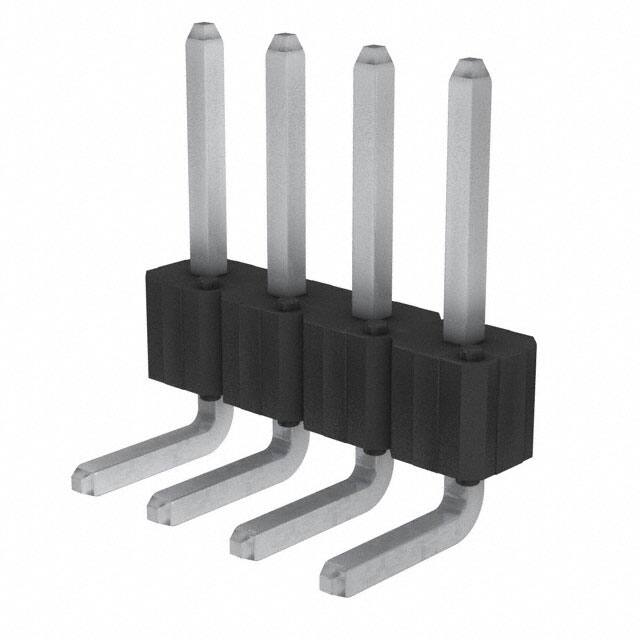

68016-404HLF

Teknik Özellikler

Mating Post Length

5.84mm

Uzunluk

10.16mm

Max Voltage Rating Ac

1.5kV

Lead Length

3.05mm

Radyasyon Dayanımı

No

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Lead Pitch

2.54mm

Akım Değeri

3A

Fastening Type

Push-Pull

Housing Color

Black

Contact Finish Thickness Mating

100.0μin 2.54μm

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Montaj

Through Hole

Renk

Black

Contact Gender

Male

Insulation Resistance

5GOhm

Contact Length Post

0.120 3.05mm

Contact Plating

Tin

Insulation Height

0.095 2.41mm

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Depth

9.9mm

Seri

BERGSTIK® II

Parça Durumu

Active

Pitch

2.54mm

Contact Materials

Phosphor Bronze

Pitch Mating

0.100 2.54mm

Flammability Rating

UL94 V-0

Maks. Çalışma Sıcaklığı

125°C

Contact Shape

Square

Contact Type

Male Pin

Fabrika Tedarik Süresi

8 Weeks

Shrouding

Unshrouded

Kurşunsuz

Lead Free

Connector Type

Header

Montaj Tipi

Through Hole, Right Angle

Number Of Contacts

4

Contact Lengthmating

0.230 5.84mm
