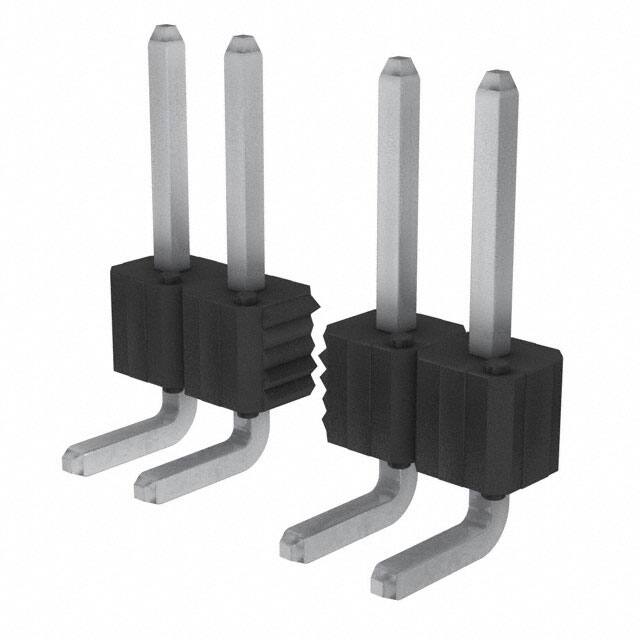

68015-405HLF

Teknik Özellikler

Housing Material

Thermoplastic

Sıra Sayısı

1

Nominal Gerilim

1.5kV

Orientation

Right Angle

Contact Finish Post

Tin

Terminal

Solder

Insulation Color

Black

Style

Board to Board

Pozisyon Sayısı

5

Ambalaj

Bulk

Min. Çalışma Sıcaklığı

-65°C

Contact Type

Male Pin

Maks. Çalışma Sıcaklığı

125°C

Contact Shape

Square

Shrouding

Unshrouded

Fabrika Tedarik Süresi

7 Weeks

Connector Type

Header

Montaj Tipi

Through Hole, Right Angle

Number Of Contacts

5

Contact Lengthmating

0.230 5.84mm

Renk

Black

Insulation Resistance

5GOhm

Contact Gender

Male

Contact Length Post

0.090 2.29mm

Insulation Height

0.095 2.41mm

Contact Plating

Tin

Seri

BERGSTIK® II

Depth

9.9mm

Contact Finish Mating

Tin

RoHS Durumu

RoHS Compliant

Pitch

2.54mm

Parça Durumu

Active

Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm

Contact Materials

Phosphor Bronze

Max Voltage Rating Ac

1.5kV

Mating Post Length

5.84mm

Uzunluk

12.7mm

Lead Length

2.29mm

Gender

Male
