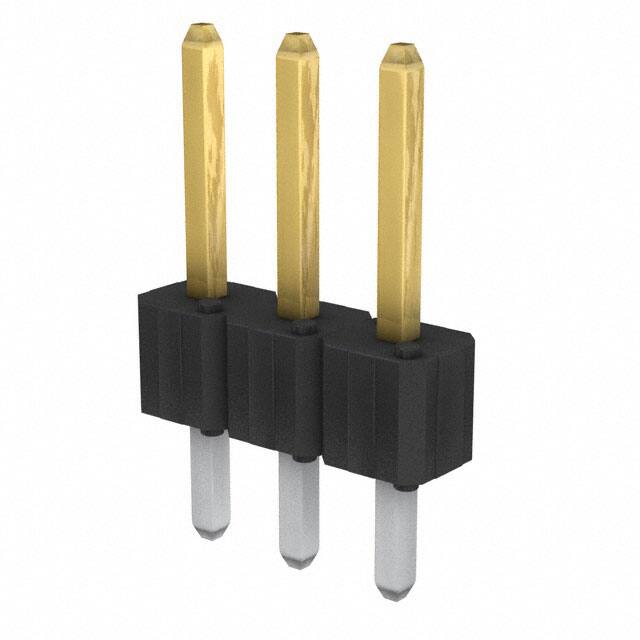

68001-203HLF

Teknik Özellikler

Contact Lengthmating

0.230 5.84mm

Number Of Contacts

3

Connector Type

Header

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

8 Weeks

Shrouding

Unshrouded

Maks. Çalışma Sıcaklığı

125°C

Contact Shape

Square

Contact Type

Male Pin

Ambalaj

Bulk

Min. Çalışma Sıcaklığı

-65°C

Overall Contact Length

0.450 11.43mm

Pozisyon Sayısı

3

Style

Board to Board

Insulation Color

Black

Terminal

Solder

Orientation

Straight

Nominal Gerilim

1.5kV

Sıra Sayısı

1

Housing Material

Thermoplastic

Montaj

Through Hole

Contact Finish Thickness Mating

15.0μin 0.38μm

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Akım Değeri

3A

Lead Pitch

2.54mm

Fastening Type

Push-Pull

Housing Color

Black

Radyasyon Dayanımı

No

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Lead Length

3.05mm

Mating Post Length

5.84mm

Uzunluk

7.62mm

Max Voltage Rating Ac

1.5kV

Contact Materials

Phosphor Bronze

Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Pitch

2.54mm
