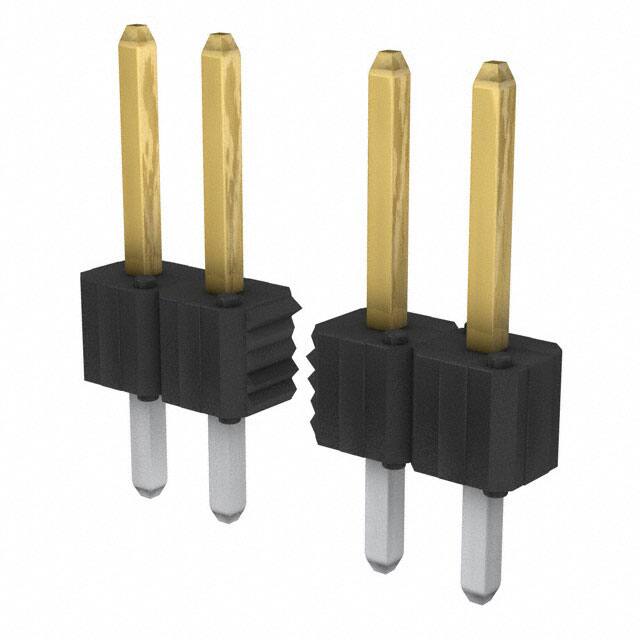

68001-108HLF

Teknik Özellikler

Contact Materials

Phosphor Bronze

Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Pitch

2.54mm

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Gold or Gold, GXT™

Seri

BERGSTIK® II

Depth

2.41mm

Contact Plating

Gold

Insulation Height

0.100 2.54mm

Contact Length Post

0.120 3.05mm

Contact Gender

Male

Insulation Resistance

5GOhm

Renk

Black

Montaj

Through Hole

Number Of Positions Loaded

All

Contact Finish Thickness Mating

30.0μin 0.76μm

Material Flammability Rating

UL94 V-0

Akım Değeri

3A

Housing Color

Black

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Radyasyon Dayanımı

No

Gender

Male

Lead Length

3.05mm

Mating Post Length

5.84mm

Uzunluk

20.32mm

Max Voltage Rating Ac

1.5kV

Ambalaj

Bulk

Min. Çalışma Sıcaklığı

-65°C

Overall Contact Length

0.450 11.43mm

Insulation Color

Black

Style

Board to Board

Pozisyon Sayısı

8

Terminal

Solder

Orientation

Straight

Sıra Sayısı

1

Nominal Gerilim

1.5kV

Yayın Yılı

2014
