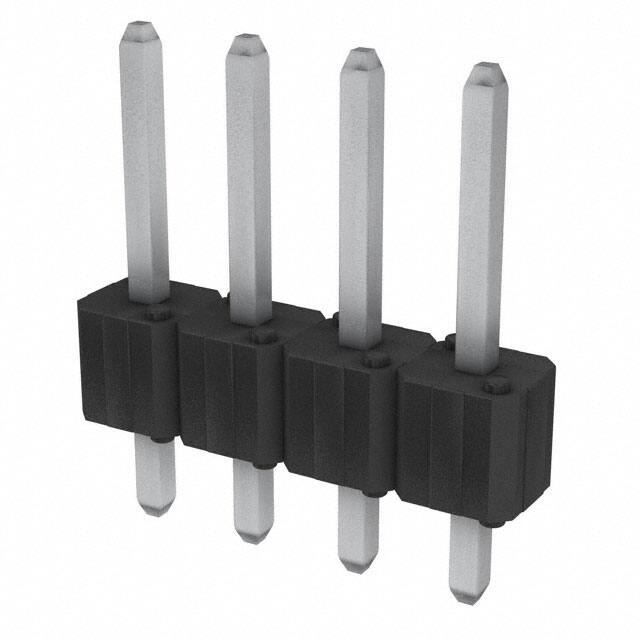

68000-404HLF

Teknik Özellikler

Seri

BERGSTIK® II

Depth

2.41mm

RoHS Durumu

RoHS Compliant

Contact Finish Mating

Tin

Insulation Height

0.100 2.54mm

Contact Plating

Tin

Pitch Mating

0.100 2.54mm

Flammability Rating

UL94 V-0

Contact Materials

Phosphor Bronze

Pitch

2.54mm

Parça Durumu

Active

Renk

Black

Contact Length Post

0.095 2.41mm

Insulation Resistance

5GOhm

Contact Gender

Male

Housing Color

Black

Fastening Type

Push-Pull

Akım Değeri

3A

Montaj

Through Hole

Number Of Positions Loaded

All

Contact Finish Thickness Mating

100.0μin 2.54μm

Material Flammability Rating

UL94 V-0

Max Voltage Rating Ac

1.5kV

Uzunluk

10.16mm

Mating Post Length

5.84mm

Gender

Male

Nem Hassasiyeti (MSL)

1 (Unlimited)

Radyasyon Dayanımı

No

Lead Length

2.41mm

Insulation Color

Black

Style

Board to Board

Pozisyon Sayısı

4

Overall Contact Length

0.425 10.80mm

Terminal

Solder

Min. Çalışma Sıcaklığı

-65°C

Ambalaj

Bulk

Housing Material

Thermoplastic

Sıra Sayısı

1

Nominal Gerilim

1.5kV

Orientation

Straight
