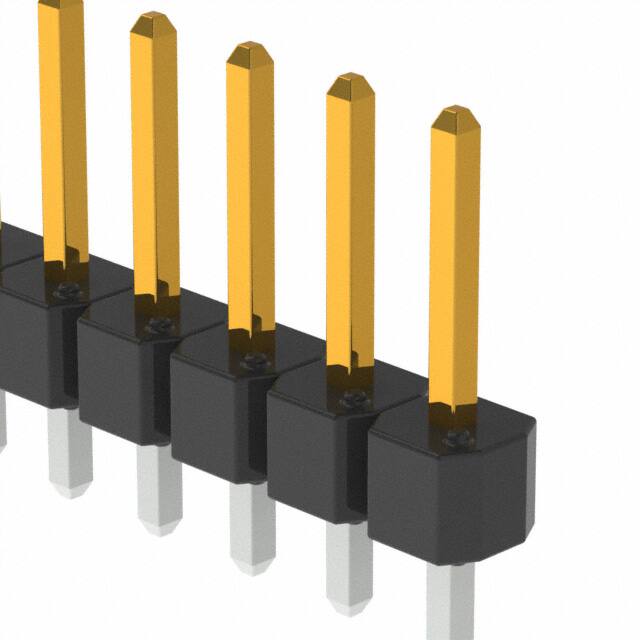

68000-236HLF

Teknik Özellikler

Number Of Contacts

36

Contact Lengthmating

0.230 5.84mm

Contact Type

Male Pin

Maks. Çalışma Sıcaklığı

125°C

Contact Shape

Square

Onay Kuruluşu

CSA, UL

Fabrika Tedarik Süresi

8 Weeks

Shrouding

Unshrouded

Kurşunsuz

Lead Free

Connector Type

Header

Montaj Tipi

Through Hole

Terminal

Solder

Overall Contact Length

0.425 10.80mm

Style

Board to Board

Insulation Color

Black

Pozisyon Sayısı

36

Min. Çalışma Sıcaklığı

-65°C

Ambalaj

Bulk

Yükseklik

8.59mm

Housing Material

Thermoplastic

Orientation

Straight

Sıra Sayısı

1

Nominal Gerilim

1.5kV

Lead Pitch

2.54mm

Akım Değeri

3A

Housing Color

Black

Fastening Type

Push-Pull

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

15.0μin 0.38μm

Montaj

Through Hole

Uzunluk

32.72mm

Mating Post Length

5.84mm

Max Voltage Rating Ac

1.5kV

Max Current Rating

2A

Lead Length

2.41mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Contact Plating

Gold

Insulation Height

0.100 2.54mm
