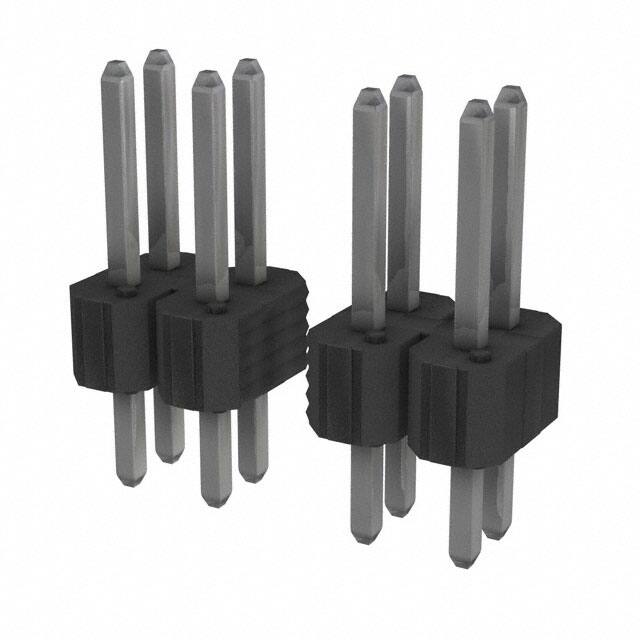

67997-472HLF

Teknik Özellikler

Max Voltage Rating Ac

1.5kV

Contact Finish Post

Tin

Nominal Gerilim

1.5kV

Contact Type

Male Pin

RoHS Durumu

RoHS Compliant

Akım Değeri

3A

Pitch

2.54mm

Seri

BERGSTIK® II

Kurşunsuz

Lead Free

Contact Finish Thickness Mating

100.0μin 2.54μm

Mating Post Length

5.84mm

Number Of Contacts

72

Parça Durumu

Active

Fastening Type

Push-Pull

Montaj

Through Hole

Min. Çalışma Sıcaklığı

-65°C

Shrouding

Unshrouded

Genişlik

4.83mm

Row Spacing Mating

0.100 (2.54mm)

Contact Lengthmating

0.230 5.84mm

Insulation Height

0.100 2.54mm

Housing Color

Black

Overall Contact Length

0.450 11.43mm

Reach Svhc

No SVHC

Lead Length

3.05mm

Contact Shape

Square

Contact Plating

Tin

Style

Board to Board

Contact Finish Mating

Tin

Depth

4.83mm

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Length Post

0.120 3.05mm

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Renk

Black

Insulation Resistance

5GOhm

Fabrika Tedarik Süresi

8 Weeks

Connector Type

Header
