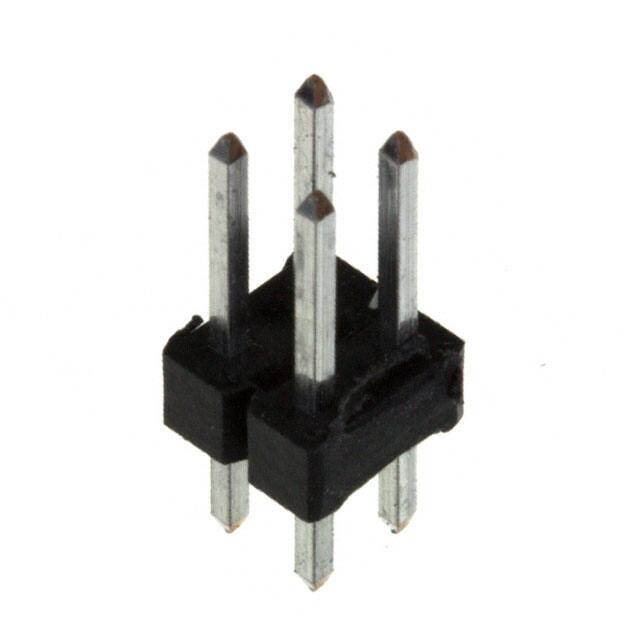

67997-404HLF

Teknik Özellikler

Housing Color

Black

Overall Contact Length

0.450 11.43mm

Reach Svhc

No SVHC

Number Of Contacts

4

Mating Post Length

5.84mm

Parça Durumu

Active

Fastening Type

Push-Pull

Montaj

Through Hole

Min. Çalışma Sıcaklığı

-65°C

Shrouding

Unshrouded

Row Spacing Mating

0.100 (2.54mm)

Contact Lengthmating

0.230 5.84mm

Insulation Height

0.100 2.54mm

Pitch

2.54mm

Akım Değeri

3A

Seri

BERGSTIK® II

Contact Finish Thickness Mating

100.0μin 2.54μm

Max Voltage Rating Ac

1.5kV

Contact Finish Post

Tin

Nominal Gerilim

1.5kV

Contact Type

Male Pin

RoHS Durumu

RoHS Compliant

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Housing Material

Thermoplastic

Gender

Male

Number Of Positions Loaded

All

Terminal

Solder

Pozisyon Sayısı

4

Maks. Çalışma Sıcaklığı

125°C

Contact Gender

Male

Uzunluk

5.08mm

Radyasyon Dayanımı

No

Contact Materials

Phosphor Bronze

Contact Length Post

0.120 3.05mm

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Renk

Black
