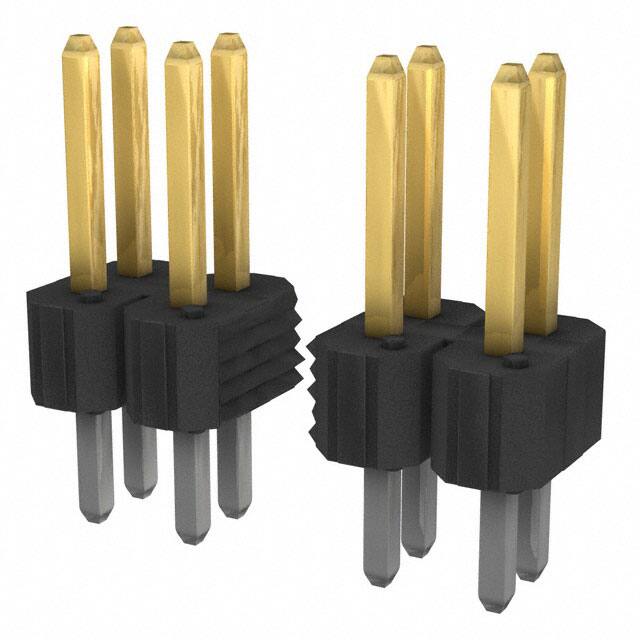

67997-210HLF

Teknik Özellikler

Pitch

2.54mm

Akım Değeri

3A

Seri

BERGSTIK® II

Contact Finish Thickness Mating

15.0μin 0.38μm

Max Voltage Rating Ac

1.5kV

Contact Type

Male Pin

Nominal Gerilim

1.5kV

RoHS Durumu

RoHS Compliant

Housing Color

Black

Overall Contact Length

0.450 11.43mm

Reach Svhc

No SVHC

Yükseklik

8.51mm

Mating Post Length

5.84mm

Number Of Contacts

10

Yayın Yılı

2009

Parça Durumu

Active

Montaj

Through Hole

Fastening Type

Push-Pull

Min. Çalışma Sıcaklığı

-65°C

Shrouding

Unshrouded

Row Spacing Mating

0.100 (2.54mm)

Contact Lengthmating

0.230 5.84mm

Insulation Height

0.100 2.54mm

Contact Length Post

0.120 3.05mm

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Renk

Black

Insulation Resistance

5GOhm

Fabrika Tedarik Süresi

7 Weeks

Connector Type

Header

Lead Length

3.05mm

Contact Shape

Square

Style

Board to Board

Contact Plating

Gold

Contact Finish Mating

Gold or Gold, GXT™

Depth

4.83mm

Flammability Rating

UL94 V-0

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole
