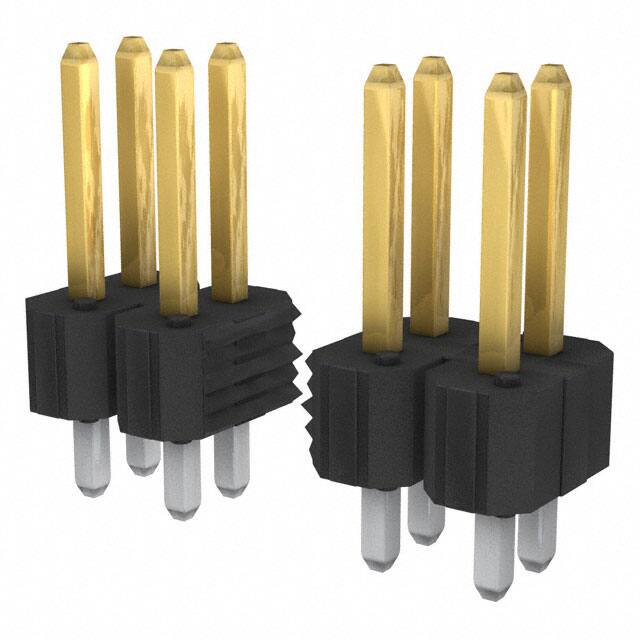

67996-516H

Teknik Özellikler

Body Breadth

0.19 inch

RoHS Durumu

ROHS3 Compliant

JESD-609 Kodu

e0

Pcb Contact Pattern

RECTANGULAR

Iec Conformance

NO

Mating Contact Pitch

0.1 inch

Row Spacing Mating

0.100 (2.54mm)

Montaj

Through Hole

Mixed Contacts

NO

Option

GENERAL PURPOSE

Plating Thickness

FLASH inch

ECCN Kodu

EAR99

Contact Finish Mating

Gold or Gold, GXT™

Insulation Color

Black

Fabrika Tedarik Süresi

11 Weeks

Overall Contact Length

0.425 10.80mm

Ul Flammability Code

94V-0

Style

Board to Board

Filter Feature

NO

Max Voltage Rating Ac

1.5kV

HTS Kodu

8536.69.40.40

Seri

BERGSTIK® II

Parça Durumu

Active

Montaj Tipi

Through Hole

Contact Length Post

0.095 2.41mm

Sıra Sayısı

2

Number Of Conductors

ONE

Pitch Mating

0.100 2.54mm

Shrouding

Unshrouded

Additional Feature

BREAKAWAY TYPE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Connector Type

Header

Number Of Positions Loaded

All

Mil Conformance

NO

Uzunluk

20.32mm

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

15.0μin 0.38μm
