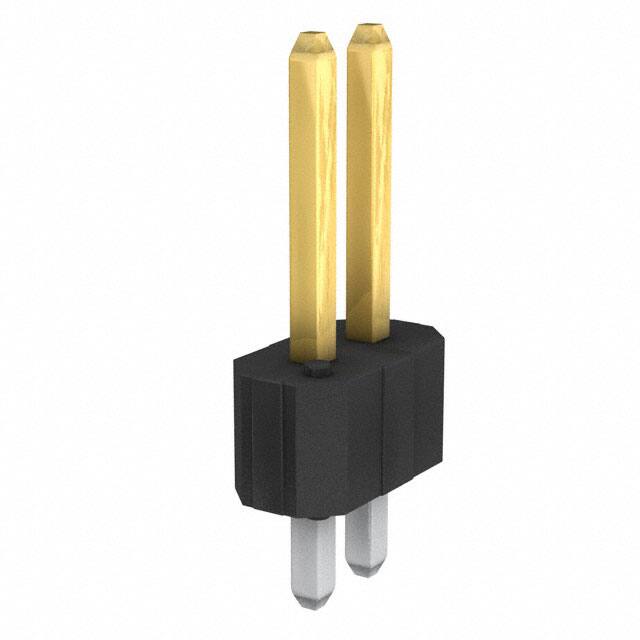

67996-102HLF

Teknik Özellikler

Reach Svhc

No SVHC

Max Voltage Rating Ac

1.5kV

Flammability Rating

UL94 V-0

Lead Length

2.41mm

Housing Material

Thermoplastic

Seri

BERGSTIK® II

Parça Durumu

Active

Montaj Tipi

Through Hole

Contact Gender

Male

Contact Length Post

0.095 2.41mm

Contact Finish Mating

Gold or Gold, GXT™

Insulation Color

Black

Fabrika Tedarik Süresi

8 Weeks

Overall Contact Length

0.425 10.80mm

Style

Board to Board

Montaj

Through Hole

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2009

Radyasyon Dayanımı

No

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.100 2.54mm

Depth

4.83mm

Maks. Çalışma Sıcaklığı

125°C

Fastening Type

Push-Pull

Mating Post Length

5.84mm

Orientation

Straight

Insulation Resistance

5GOhm

Contact Shape

Square

Contact Lengthmating

0.230 5.84mm

Min. Çalışma Sıcaklığı

-65°C

Contact Type

Male Pin

Pozisyon Sayısı

2

Contact Plating

Gold

Housing Color

Black

Contact Materials

Phosphor Bronze

Renk

Black

Connector Type

Header

Number Of Positions Loaded

All

Uzunluk

2.54mm

Material Flammability Rating

UL94 V-0
