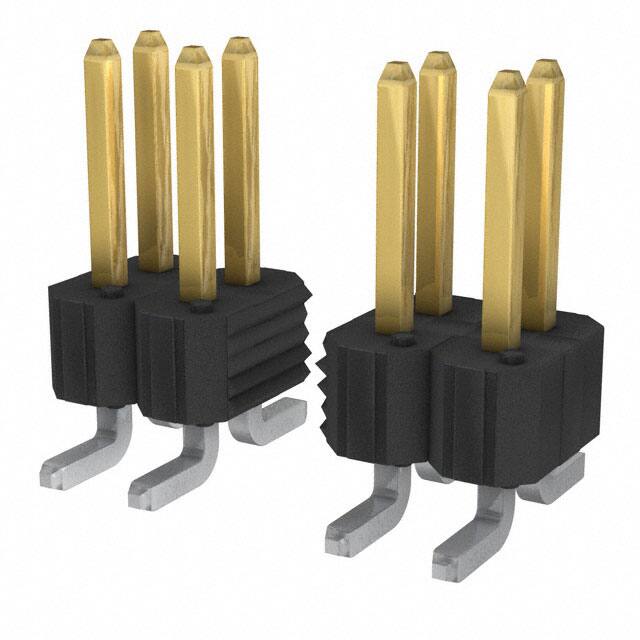

54202-G0813AA03LF

Teknik Özellikler

Terminal

Solder

Contact Type

Male Pin

Ambalaj

Tape & Reel (TR)

Contact Lengthmating

0.230 5.84mm

Fastening Type

Push-Pull

Akım Değeri

3A

RoHS Durumu

RoHS Compliant

Özellikler

Pick and Place

Contact Materials

Phosphor Bronze

Uzunluk

33.02mm

Contact Plating

GXT, Gold

Nominal Gerilim

1.5kV

Contact Finish Thickness Mating

30.0μin 0.76μm

Orientation

Straight

Montaj Tipi

Surface Mount

Material Flammability Rating

UL94 V-0

Insulation Resistance

5GOhm

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Post Length

5.84mm

Shrouding

Unshrouded

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.100 2.54mm

Depth

4.83mm

Contact Gender

Male

Housing Material

Thermoplastic

Montaj

Surface Mount

Contact Finish Post

Tin

Style

Board to Board

Fabrika Tedarik Süresi

8 Weeks

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Insulation Color

Black

Pozisyon Sayısı

26

Pitch Mating

0.100 2.54mm

Sıra Sayısı

2

Contact Finish Thickness Post

100.0μin 2.54μm

Number Of Positions Loaded

25

Connector Type

Header

Seri

BERGSTIK®
