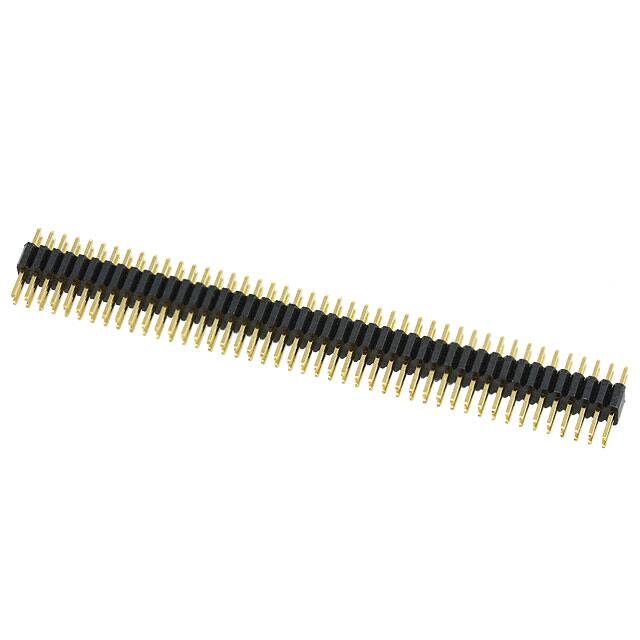

20021111-00090T4LF

Teknik Özellikler

Contact Materials

Copper Alloy

Housing Material

Plastic

Montaj Tipi

Through Hole

Renk

Black

Gender

Male

Material Flammability Rating

UL94 V-0

Sıra Sayısı

2

Housing Color

Black

Lead Length

2.3mm

Contact Lengthmating

0.120 3.05mm

Contact Finish Mating

Gold

Max Voltage Rating Ac

125V

Pitch Mating

0.050 1.27mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Contact Finish Post

Tin

Fastening Type

Push-Pull

Akım Değeri

90A

Depth

3.4mm

Uzunluk

57.15mm

Shrouding

Unshrouded

Number Of Positions Loaded

All

Contact Type

Male Pin

Style

Board to Board

Insulation Color

Black

Insulation Height

0.098 2.50mm

Contact Plating

Gold

Contact Resistance

30mOhm

Contact Finish Thickness Post

50.0μin 1.27μm

Fabrika Tedarik Süresi

8 Weeks

RoHS Durumu

RoHS Compliant

Seri

Minitek127® 1.27mm

Connector Type

Header

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Materials

Thermoplastic

Contact Length Post

0.091 2.30mm

Mating Post Length

3.05mm

Row Spacing Mating

0.050 (1.27mm)

Min. Çalışma Sıcaklığı

-40°C

Montaj

Through Hole
