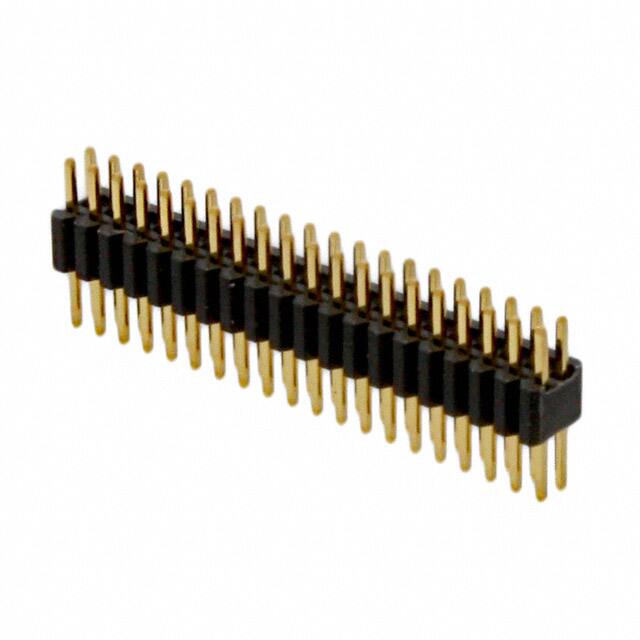

20021111-00040T4LF

Teknik Özellikler

Insulation Color

Black

Contact Finish Thickness Post

50.0μin 1.27μm

Reach Svhc

No SVHC

Contact Plating

Gold

Contact Resistance

30mOhm

Insulation Height

0.098 2.50mm

RoHS Durumu

RoHS Compliant

Seri

Minitek127® 1.27mm

Fabrika Tedarik Süresi

8 Weeks

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Materials

Thermoplastic

Connector Type

Header

Min. Çalışma Sıcaklığı

-40°C

Mating Post Length

3.05mm

Contact Length Post

0.091 2.30mm

Row Spacing Mating

0.050 (1.27mm)

Maks. Çalışma Sıcaklığı

85°C

Parça Durumu

Active

Montaj

Through Hole

Nominal Gerilim

125V

Ambalaj

Tube

Number Of Contacts

40

Pozisyon Sayısı

40

Overall Contact Length

0.309 7.86mm

Pitch

1.27mm

Contact Shape

Square

Orientation

Straight

Housing Material

Plastic

Contact Materials

Copper Alloy

Montaj Tipi

Through Hole

Renk

Black

Yayın Yılı

2013

Lead Length

2.3mm

Housing Color

Black

Sıra Sayısı

2

Gender

Male

Material Flammability Rating

UL94 V-0

Contact Lengthmating

0.120 3.05mm

Contact Finish Mating

Gold

Terminal

Solder
