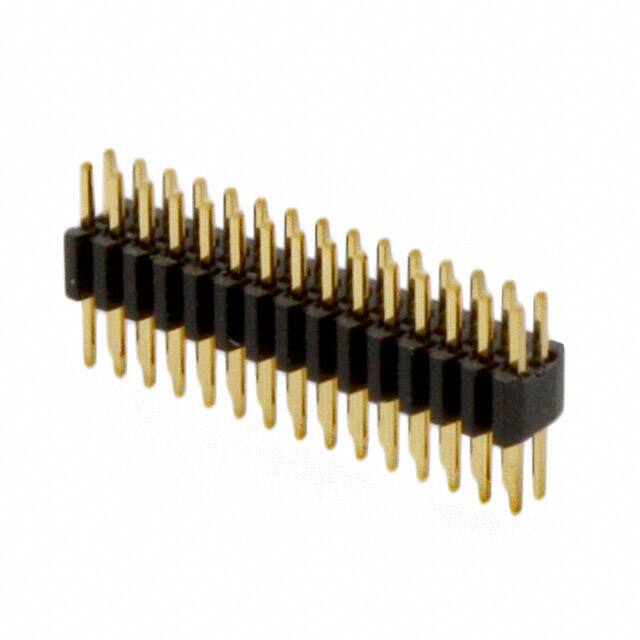

20021111-00030T4LF

Teknik Özellikler

Akım Değeri

30A

Fastening Type

Push-Pull

Depth

3.4mm

Uzunluk

19.05mm

Shrouding

Unshrouded

Contact Finish Post

Tin

Terminal

Solder

Max Voltage Rating Ac

125V

Pitch Mating

0.050 1.27mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board

Contact Type

Male Pin

Number Of Positions Loaded

All

Montaj Tipi

Through Hole

Renk

Black

Contact Materials

Copper Alloy

Housing Material

Plastic

Contact Finish Mating

Gold

Contact Lengthmating

0.120 3.05mm

Housing Color

Black

Lead Length

2.3mm

Gender

Male

Material Flammability Rating

UL94 V-0

Sıra Sayısı

2

Maks. Çalışma Sıcaklığı

85°C

Parça Durumu

Active

Montaj

Through Hole

Min. Çalışma Sıcaklığı

-40°C

Mating Post Length

3.05mm

Contact Length Post

0.091 2.30mm

Row Spacing Mating

0.050 (1.27mm)

Orientation

Straight

Overall Contact Length

0.309 7.86mm

Pitch

1.27mm

Contact Shape

Square

Nominal Gerilim

125V

Pozisyon Sayısı

30

Number Of Contacts

30

Ambalaj

Tube

Contact Resistance

30mOhm
