Adet bazlı fiyat
- 1+ adet$1.58
- 10+ adet$1.49
- 100+ adet$1.41
- 500+ adet$1.33
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

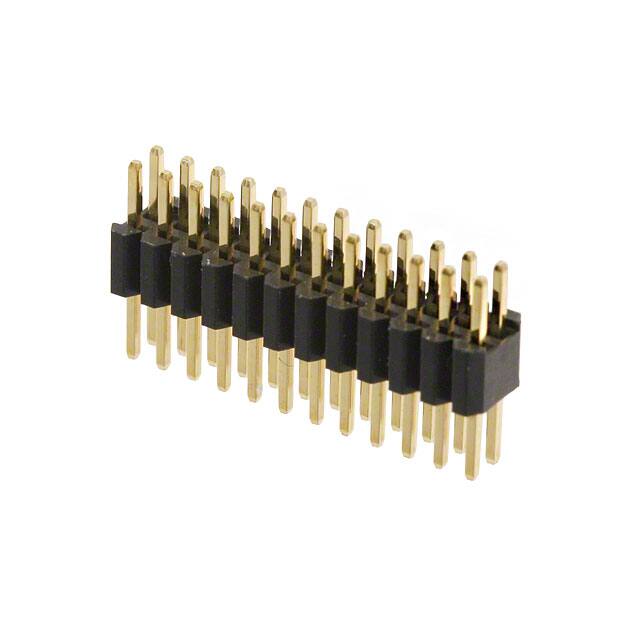

Teknik Özellikler
- Housing Material
- Plastic
- Contact Materials
- Copper Alloy
- Renk
- Black
- Montaj Tipi
- Through Hole
- Lead Length
- 2.3mm
- Housing Color
- Black
- Sıra Sayısı
- 2
- Material Flammability Rating
- UL94 V-0
- Gender
- Male
- Contact Lengthmating
- 0.120 3.05mm
- Contact Finish Mating
- Gold
- Terminal
- Solder
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Pitch Mating
- 0.050 1.27mm
- Max Voltage Rating Ac
- 125V
- Shrouding
- Unshrouded
- Uzunluk
- 15.24mm
- Depth
- 3.4mm
- Akım Değeri
- 24A
- Fastening Type
- Push-Pull
- Contact Finish Post
- Tin
- Contact Type
- Male Pin
- Number Of Positions Loaded
- All
- Style
- Board to Board
- Insulation Color
- Black
- Contact Finish Thickness Post
- 50.0μin 1.27μm
- Contact Resistance
- 30mOhm
- Contact Plating
- Gold
- Insulation Height
- 0.098 2.50mm
- Seri
- Minitek127® 1.27mm
- RoHS Durumu
- RoHS Compliant
- Fabrika Tedarik Süresi
- 8 Weeks
- Insulation Materials
- Thermoplastic
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Connector Type
- Header
- Min. Çalışma Sıcaklığı
- -40°C
- Row Spacing Mating
- 0.050 (1.27mm)
- Contact Length Post
- 0.091 2.30mm
- Mating Post Length
- 3.05mm
- Parça Durumu
- Active
