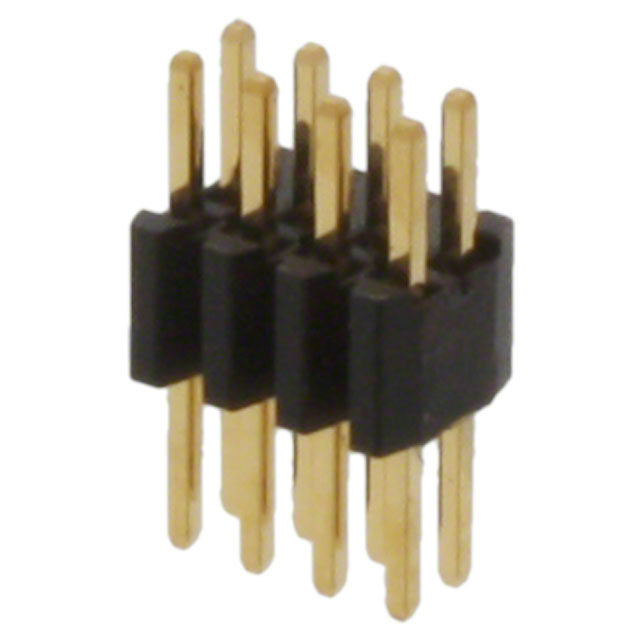

20021111-00008T4LF

Teknik Özellikler

Montaj

Through Hole

Parça Durumu

Active

Maks. Çalışma Sıcaklığı

85°C

Row Spacing Mating

0.050 (1.27mm)

Mating Post Length

3.05mm

Contact Length Post

0.091 2.30mm

Min. Çalışma Sıcaklığı

-40°C

Contact Shape

Square

Pitch

1.27mm

Overall Contact Length

0.309 7.86mm

Orientation

Straight

Ambalaj

Tube

Pin Sayısı

8

Number Of Contacts

8

Pozisyon Sayısı

8

Kurşunsuz

Lead Free

Nominal Gerilim

125V

Insulation Height

0.098 2.50mm

Reach Svhc

No SVHC

Contact Finish Thickness Post

50.0μin 1.27μm

Contact Resistance

30mOhm

Contact Plating

Gold

Insulation Color

Black

Connector Type

Header

Insulation Materials

Thermoplastic

Contact Finish Thickness Mating

10.0μin 0.25μm

Seri

Minitek127® 1.27mm

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

6 Weeks

Contact Finish Post

Tin

Shrouding

Unshrouded

Uzunluk

5.08mm

Depth

3.4mm

Akım Değeri

8A

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

125V

Pitch Mating

0.050 1.27mm

Terminal

Solder

Style

Board to Board
