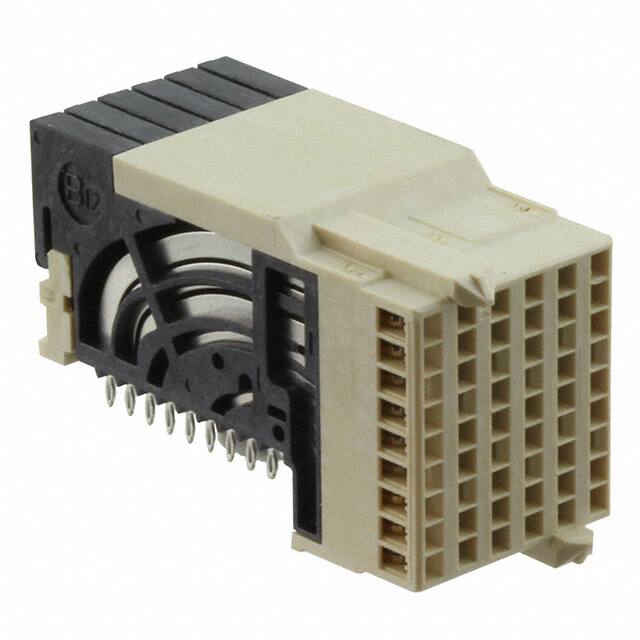

10122643-101LF

Teknik Özellikler

Connector Style

High Speed

Contact Plating

Gold, Tin

Reliability

COMMERCIAL

Connector Type

Receptacle, Female Sockets

Durability

200 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Pitch

0.079 2.00mm

Max Current Rating

500mA

Number Of Pcb Rows

9

Reference Standard

UL

Uzunluk

25.8mm

Fabrika Tedarik Süresi

9 Weeks

Insulation Resistance

1000000000Ohm

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Max Voltage Rating Ac

30V

Polarization Key

POLARIZED HOUSING

Number Of Columns

6

Voltage Rated Ac

50V

Total Number Of Contacts

54

Withdrawl Forcemin

.15012 N

Yayın Yılı

2014

Contact Finish

Gold

Connector Usage

Daughtercard

Nominal Gerilim

50VAC

Depth

27.3mm

Contact Materials

NOT SPECIFIED

RoHS Durumu

RoHS Compliant

Akım Değeri

500mA

Current Rating Amps

0.5A per Contact

Terminal

Press-Fit

Renk

Natural

Housing Material

Thermoplastic

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~85°C

Sıra Sayısı

9

Orientation

Straight

Flammability Rating

UL94 V-0

Gender

Female
