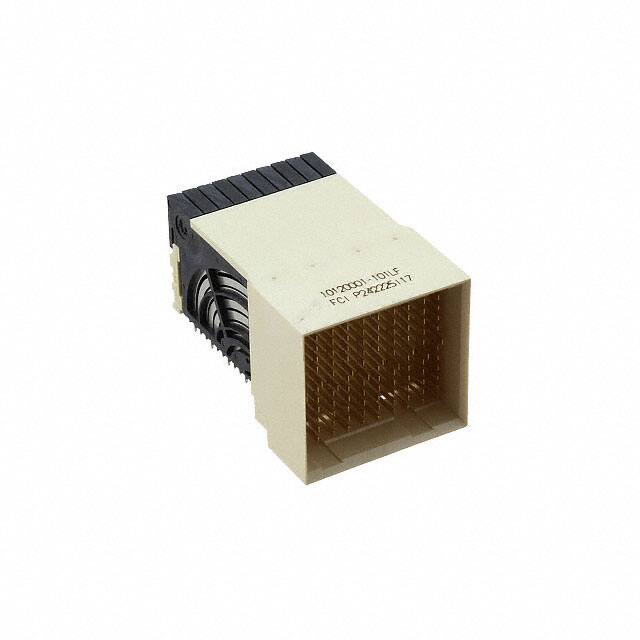

10120001-101LF

Teknik Özellikler

Number Of Positions Loaded

All

Sıra Sayısı

12

Reference Standard

UL

Contact Finish

Gold

Connector Style

High Speed

Current Rating Amps

0.5A per Contact

Pcb Contact Row Spacing

1.397 mm

Seri

Airmax VSe®

Number Of Pcb Rows

12

Renk

Natural

Connector Type

Header, Male Pins

Montaj

Edge, Through Hole

Housing Material

Thermoplastic

Body Breadth

0.811 inch

Body Depth

1.331 inch

Pozisyon Sayısı

120

Contact Pattern

RECTANGULAR

Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

700VAC V

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~85°C

Orientation

Right Angle

Max Voltage Rating Ac

50V

Nominal Gerilim

50VAC

Voltage Rated Ac

50V

Uzunluk

21.9mm

Polarization Key

POLARIZED HOUSING

Contact Plating

Gold, Tin

Contact Style

BLADE PIN-SKT

Contact Materials

NOT SPECIFIED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insertion Forcemax

.5004 N

Material Flammability Rating

UL94 V-0

Montaj Tipi

Board Edge, Through Hole, Right Angle

Ambalaj

Tube

Durability

200 Cycles

Terminal

Press-Fit

Total Number Of Contacts

120

Connector Usage

Daughtercard
