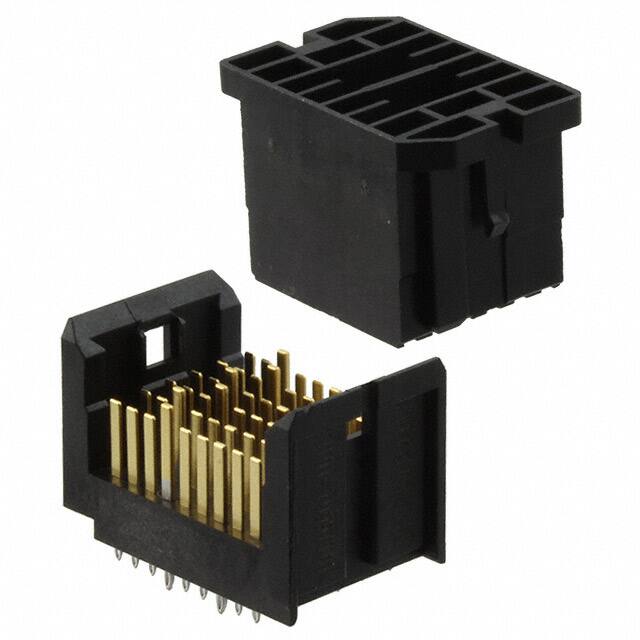

10116601-101LF

Teknik Özellikler

Total Number Of Contacts

54

Withdrawl Forcemin

.15012 N

Orientation

Straight

Number Of Columns

6

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Connector Type

Header, Male Pins

Contact Plating

Gold, Tin

Body Depth

0.49 inch

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Montaj

Through Hole

Terminal

Press-Fit

Insertion Forcemax

.4448 N

Çalışma Sıcaklığı

-55°C~85°C

Ambalaj

Tube

Pitch

0.055 1.40mm

Number Of Positions Loaded

All

Dielectric Withstanding Voltage

500VAC V

Reliability

COMMERCIAL

Sıra Sayısı

9

Insulation Resistance

1000000000Ohm

Contact Resistance

35mOhm

Housing Material

Thermoplastic

Renk

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Pcb Contact Row Spacing

1.397 mm

Connector Style

High Speed

Durability

200 Cycles

Fabrika Tedarik Süresi

8 Weeks

Pozisyon Sayısı

54

Connector Usage

Daughtercard

Material Flammability Rating

UL94 V-0

Stack Height

12.5mm

Montaj Tipi

Through Hole

Reference Standard

UL

ECCN Kodu

EAR99

Uzunluk

11.9mm

Contact Finish

Gold
