Adet bazlı fiyat
- 1+ adet$0.23
- 10+ adet$0.21
- 100+ adet$0.20
- 500+ adet$0.19
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

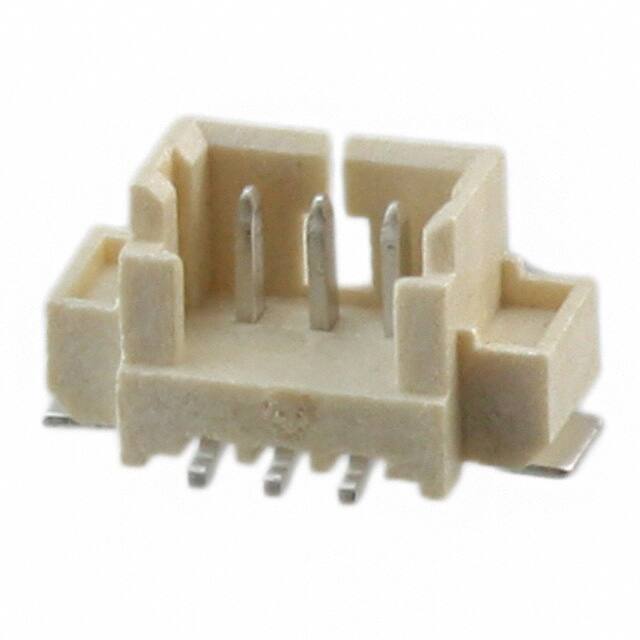

Teknik Özellikler
- Max Current Rating
- 1A
- Min. Çalışma Sıcaklığı
- -40°C
- Contact Plating
- Tin
- Pitch
- 1.25mm
- Insulation Resistance
- 100MOhm
- Contact Materials
- Copper Alloy
- Wirecable Gauge
- 32 AWG
- Material Flammability Rating
- UL94 V-0
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Maks. Çalışma Sıcaklığı
- 105°C
- Contact Shape
- Rectangular
- Current Rating Amps
- 1A
- Terminal
- Solder
- Shrouding
- Shrouded - 4 Wall
- Pozisyon Sayısı
- 3
- Housing Material
- Thermoplastic
- Housing Color
- Natural
- Parça Durumu
- Active
- Number Of Contacts
- 3
- Uzunluk
- 8.5mm
- Connector Type
- Header
- Montaj Tipi
- Surface Mount
- Insulation Color
- Natural
- Contact Type
- Male Pin
- Number Of Positions Loaded
- All
- Reach Svhc
- No SVHC
- Contact Resistance
- 20mOhm
- Fastening Type
- Detent Lock
- Contact Finish Mating
- Tin
- Montaj
- Surface Mount
- Contact Finish Post
- Tin
- RoHS Durumu
- RoHS Compliant
- Seri
- 10114828
- Depth
- 4.25mm
- Max Voltage Rating Dc
- 125V
- Renk
- Natural
- Fabrika Tedarik Süresi
- 12 Weeks
- Ambalaj
- Cut Tape (CT)
- Orientation
- Straight
- Sıra Sayısı
- 1
