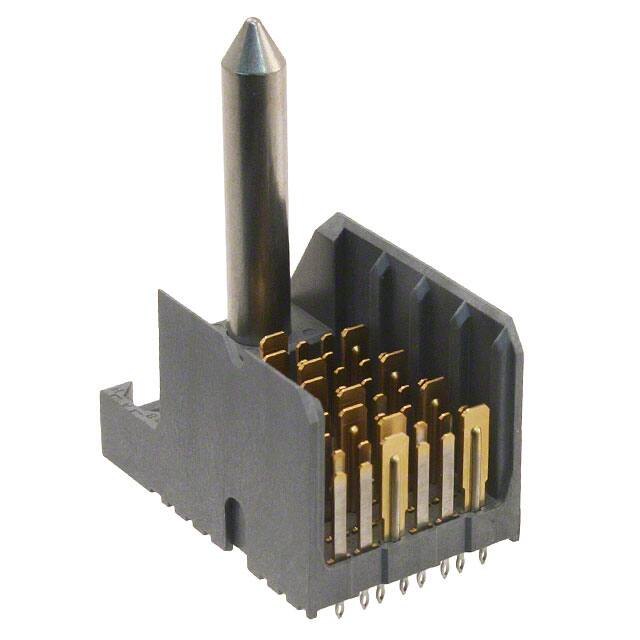

10113949-Y0E-20DLF

Teknik Özellikler

Withdrawl Forcemin

.14734 N

Özellikler

Key

Filter Feature

NO

Connector Style

XCede®, Guide Right

Montaj Tipi

Through Hole

Connector Type

Header, Male Pins and Blades

Reference Standard

UL

Ul Flammability Code

94V-0

Connector Usage

Backplane

Number Of Positions Loaded

All

Number Of Conductors

ONE

Reliability

COMMERCIAL

Contact Finish Thickness

30.0μin 0.76μm

Housing Material

Thermoplastic

Option

GENERAL PURPOSE

Pozisyon Sayısı

24

Length Termination

0.05 inch

Insertion Forcemax

.6394 N

Parça Durumu

Active

Body Breadth

0.551 inch

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Mil Conformance

NO

Din Conformance

NO

Additional Feature

POLARIZED

Material Flammability Rating

UL94 V-0

Insulator Color

GRAY

Terminal

Press-Fit

Flammability Rating

UL94 V-0

Contact Pattern

STAGGERED

Ambalaj

Tray

Contact Finish

Gold or Gold, GXT™

Pcb Contact Pattern

STAGGERED

Montaj

Through Hole

Contact Style

BLADE PIN-SKT

Contact Resistance

55mOhm

Mixed Contacts

NO

Pitch

1.85mm

Number Of Columns

8
