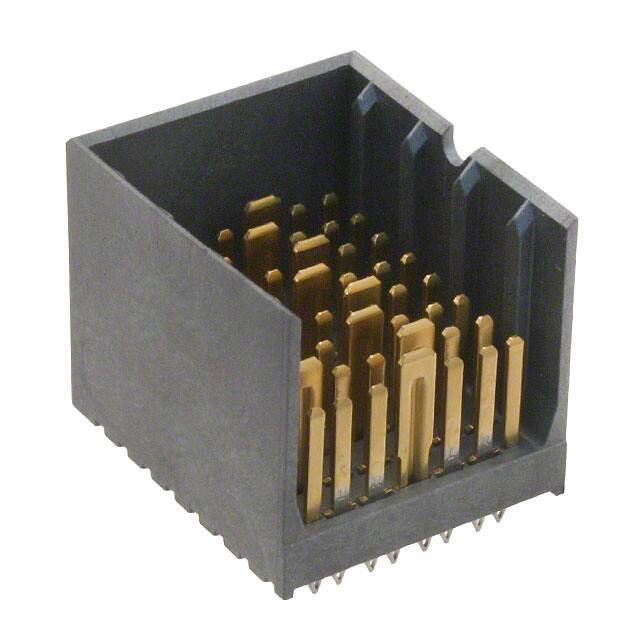

10113949-L0E-20DLF

Teknik Özellikler

Iec Conformance

NO

Mil Conformance

NO

Din Conformance

NO

Orientation

Straight

Contact Pattern

STAGGERED

Ambalaj

Tray

Contact Finish

Gold or Gold, GXT™

Contact Style

BLADE PIN-SKT

Montaj

Through Hole

Reach Svhc

No SVHC

Mixed Contacts

NO

Contact Resistance

55mOhm

Number Of Columns

8

RoHS Durumu

RoHS Compliant

Seri

XCede®

Depth

14mm

Yayın Yılı

2014

Contact Layout Typical

16 Signal Pairs, 20 Ground

Gender

Male

Radyasyon Dayanımı

No

Connector Usage

Backplane

Number Of Conductors

ONE

Reliability

COMMERCIAL

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Sıra Sayısı

2

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulator Color

GRAY

Polarization Key

POLARIZED HOUSING

Material Flammability Rating

UL94 V-0

Terminal

Press-Fit

Row Spacing

1.85 mm

Flammability Rating

UL94 V-0

Pcb Contact Pattern

STAGGERED

Contact Plating

Gold

Pitch

1.85mm

JESD-609 Kodu

e3

Insulation Resistance

1000000000Ohm

ECCN Kodu

EAR99
