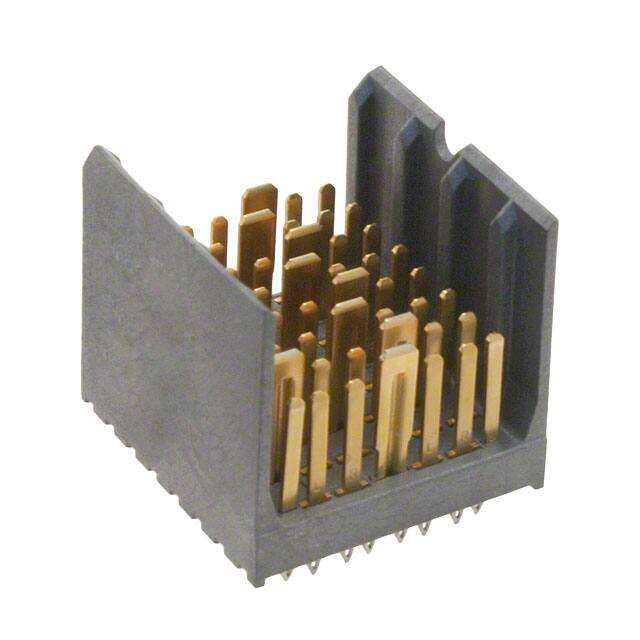

10113949-00E-20DLF

Teknik Özellikler

Contact Finish Thickness

30.0μin 0.76μm

Housing Material

Thermoplastic

Insertion Forcemax

.6394 N

Parça Durumu

Active

Body Breadth

0.551 inch

Number Of Contacts

32

ECCN Kodu

EAR99

Withdrawl Forcemin

.14734 N

Filter Feature

NO

Montaj Tipi

Through Hole

Connector Type

Header, Male Pins and Blades

Uzunluk

14.8mm

Ul Flammability Code

94V-0

Reference Standard

UL

Number Of Positions Loaded

All

Contact Plating

Gold

Pitch

1.85mm

JESD-609 Kodu

e3

Insulation Resistance

1000000000Ohm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Insulator Color

GRAY

Material Flammability Rating

UL94 V-0

Terminal

Press-Fit

Row Spacing

1.85 mm

Flammability Rating

UL94 V-0

Pcb Contact Pattern

STAGGERED

Reliability

COMMERCIAL

Option

GENERAL PURPOSE

Sıra Sayısı

2

Kurşunsuz Kodu

yes

Gender

Male

Radyasyon Dayanımı

No

Connector Usage

Backplane

Number Of Conductors

ONE

Contact Style

BLADE PIN-SKT

Montaj

Through Hole

Mixed Contacts

NO

Reach Svhc

No SVHC

Contact Resistance

55mOhm
