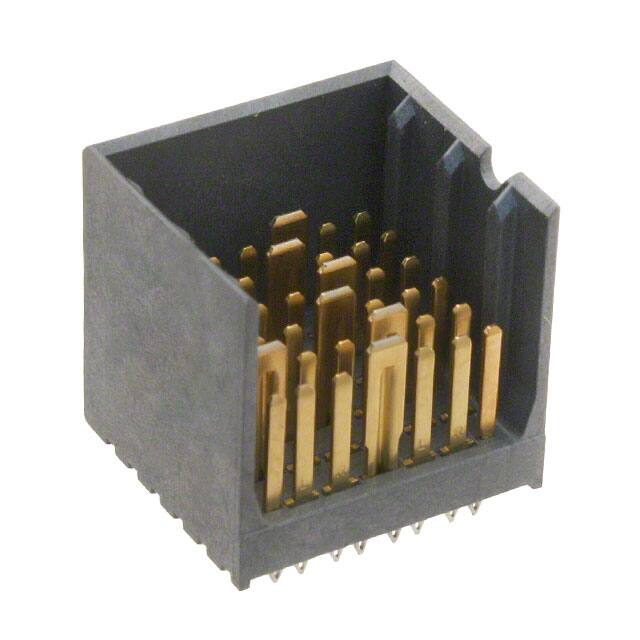

10113947-L0C-20DLF

Teknik Özellikler

JESD-609 Kodu

e3

Insulation Resistance

1000000000Ohm

Pitch

1.85mm

Contact Plating

Gold

Flammability Rating

UL94 V-0

Pcb Contact Pattern

STAGGERED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Insulator Color

GRAY

Polarization Key

POLARIZED HOUSING

Terminal

Press-Fit

Row Spacing

1.85 mm

Parça Durumu

Obsolete

Number Of Contacts

24

Body Breadth

0.551 inch

Contact Finish Thickness

30.0μin 0.76μm

Housing Material

Thermoplastic

Pozisyon Sayısı

18

Reference Standard

UL

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Withdrawl Forcemin

.14734 N

Filter Feature

NO

Connector Style

XCede®, Left Wall

Montaj Tipi

Through Hole

Connector Type

Header, Male Pins and Blades

Uzunluk

12.6mm

Seri

XCede®

Contact Layout Typical

12 Signal Pairs, 15 Ground

Yayın Yılı

2014

Depth

14mm

Montaj

Through Hole

Contact Style

BLADE PIN-SKT

Contact Resistance

55mOhm

Reach Svhc

No SVHC

Mixed Contacts

NO

Number Of Columns

6

RoHS Durumu

RoHS Compliant

Orientation

Straight
