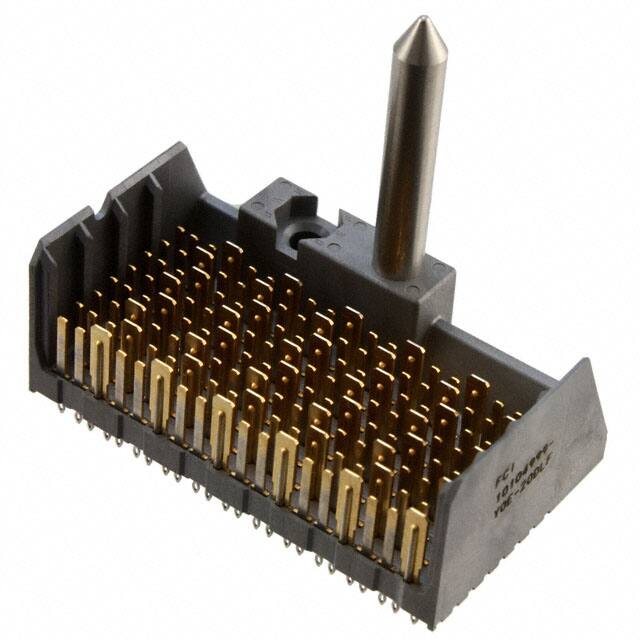

10104999-Y0E-20DLF

Teknik Özellikler

Number Of Columns

8

Montaj

Through Hole

Insulation Resistance

1000000000Ohm

Contact Plating

GXT, Gold

Withdrawl Forcemin

.14734 N

Option

GENERAL PURPOSE

Insertion Forcemax

.6394 N

Contact Style

BLADE PIN-SKT

Insulator Color

GRAY

Connector Style

XCede®, Guide Right

Seri

XCede®

Contact Pattern

STAGGERED

Kurşunsuz Kodu

yes

Contact Resistance

55mOhm

Pcb Contact Pattern

STAGGERED

Parça Durumu

Obsolete

Terminal

Press-Fit

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

THERMOPLASTIC

Montaj Tipi

Through Hole

Mil Conformance

NO

Material Flammability Rating

UL94 V-0

Length Termination

0.051 inch

Iec Conformance

NO

Reference Standard

UL

Total Number Of Contacts

96

Reliability

COMMERCIAL

Özellikler

Key

Contact Finish

Gold or Gold, GXT™

Number Of Positions Loaded

All

RoHS Durumu

RoHS Compliant

JESD-609 Kodu

e3

Connector Usage

Backplane

Contact Layout Typical

48 Signal Pairs, 52 Ground

Contact Finish Thickness

30.0μin 0.76μm

Ambalaj

Tray

Connector Type

Header, Male Pins and Blades

Din Conformance

NO

Flammability Rating

UL94 V-0

Number Of Conductors

ONE
