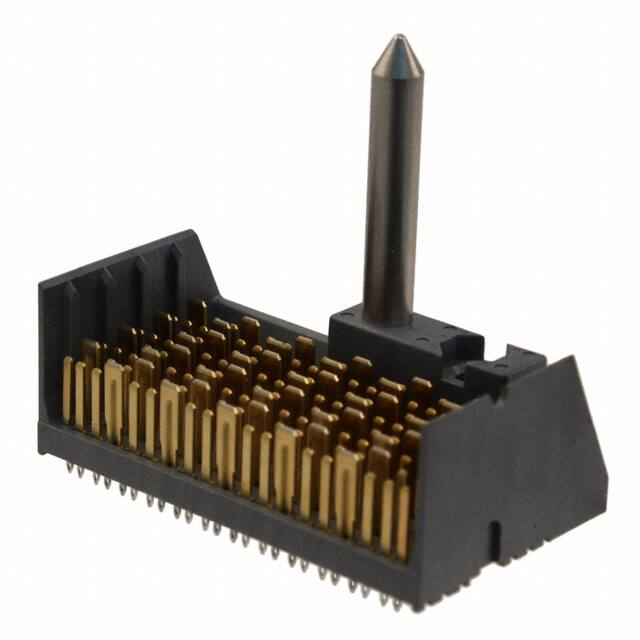

10104999-J0E-20DLF

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Mil Conformance

NO

Insulation Materials

THERMOPLASTIC

Number Of Positions Loaded

All

Contact Finish

Gold or Gold, GXT™

Özellikler

Key

Yayın Yılı

2015

Iec Conformance

NO

Reference Standard

UL

Length Termination

0.051 inch

Total Number Of Contacts

96

Reliability

COMMERCIAL

Connector Usage

Backplane

JESD-609 Kodu

e3

RoHS Durumu

RoHS Compliant

Number Of Conductors

ONE

Flammability Rating

UL94 V-0

Contact Finish Thickness

30.0μin 0.76μm

Contact Layout Typical

48 Signal Pairs, 52 Ground

Ambalaj

Tray

Connector Type

Header, Male Pins and Blades

Din Conformance

NO

Contact Plating

GXT, Gold

Insulation Resistance

1000000000Ohm

Montaj

Through Hole

Number Of Columns

8

Contact Style

BLADE PIN-SKT

Insertion Forcemax

.6394 N

Contact Resistance

55mOhm

Kurşunsuz Kodu

yes

Insulator Color

GRAY

Connector Style

XCede®, Guide Left

Seri

XCede®

Contact Pattern

STAGGERED

Withdrawl Forcemin

.14734 N

Option

GENERAL PURPOSE

Pin Sayısı

96

Parça Durumu

Obsolete

Pcb Contact Pattern

STAGGERED
