Adet bazlı fiyat
- 1+ adet$19.17
- 10+ adet$18.09
- 100+ adet$17.06
- 500+ adet$16.10
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

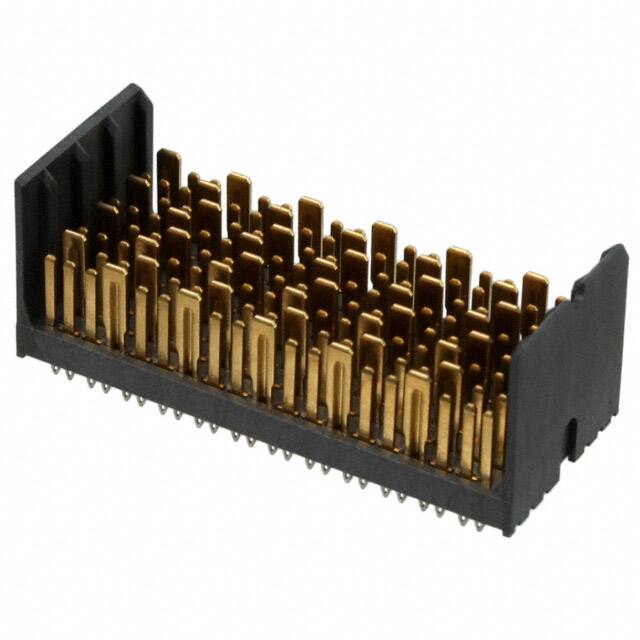

Teknik Özellikler
- Din Conformance
- NO
- Connector Type
- Header, Male Pins and Blades
- Row Spacing
- 1.85 mm
- Flammability Rating
- UL94 V-0
- JESD-609 Kodu
- e3
- Pitch
- 1.85mm
- Reliability
- COMMERCIAL
- Iec Conformance
- NO
- Number Of Positions Loaded
- All
- Reach Svhc
- No SVHC
- Montaj Tipi
- Through Hole
- Material Flammability Rating
- UL94 V-0
- Pcb Contact Pattern
- STAGGERED
- Parça Durumu
- Active
- Uzunluk
- 14.8mm
- Contact Pattern
- STAGGERED
- Insulator Color
- GRAY
- Contact Resistance
- 55mOhm
- Housing Material
- Thermoplastic
- Number Of Columns
- 8
- Contact Plating
- Gold
- ECCN Kodu
- EAR99
- Ambalaj
- Tray
- Contact Layout Typical
- 48 Signal Pairs, 52 Ground
- Contact Finish Thickness
- 30.0μin 0.76μm
- Depth
- 35.5mm
- Number Of Conductors
- ONE
- RoHS Durumu
- RoHS Compliant
- Connector Usage
- Backplane
- Reference Standard
- UL
- Yayın Yılı
- 2014
- Contact Finish
- Gold or Gold, GXT™
- Orientation
- Straight
- Mil Conformance
- NO
- Terminal
- Press-Fit
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Polarization Key
- POLARIZED HOUSING
- Pozisyon Sayısı
- 72
- Sıra Sayısı
- 6
- Option
- GENERAL PURPOSE
