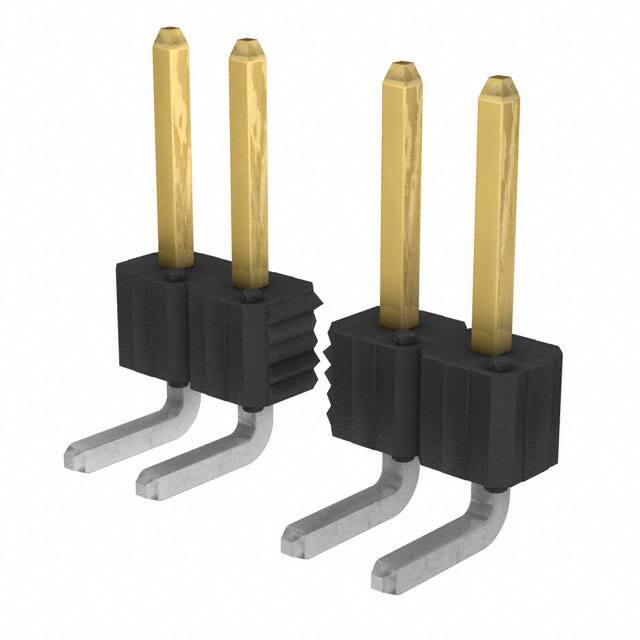

10082201-101-08LF

Teknik Özellikler

Insulation Materials

Thermoplastic

Contact Length Post

0.098 2.50mm

Housing Color

Black

Material Flammability Rating

UL94 V-0

Style

Board to Board

Montaj Tipi

Through Hole, Right Angle

Contact Type

Male Pin

Contact Lengthmating

0.230 5.84mm

Orientation

Right Angle

Number Of Positions Loaded

All

Contact Finish Thickness Post

78.7μin 2.00μm

RoHS Durumu

RoHS Compliant

Contact Materials

Phosphor Bronze

Pitch

2.54mm

Pitch Mating

0.100 2.54mm

Insulation Height

0.094 2.40mm

Contact Finish Thickness Mating

30.0μin 0.76μm

Connector Type

Header, Breakaway

Ambalaj

Bulk

Depth

9.9mm

Fabrika Tedarik Süresi

8 Weeks

Contact Shape

Square

Montaj

Through Hole

Housing Material

Thermoplastic

Shrouding

Unshrouded

Insulation Color

Black

Renk

Black

Radyasyon Dayanımı

No

Contact Plating

GXT, Gold

Number Of Contacts

8

Fastening Type

Push-Pull

Sıra Sayısı

1

Seri

BERGSTIK®

Uzunluk

20.32mm

Parça Durumu

Active

Contact Finish Mating

Gold or Gold, GXT™

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Pozisyon Sayısı

8

Contact Finish Post

Tin
