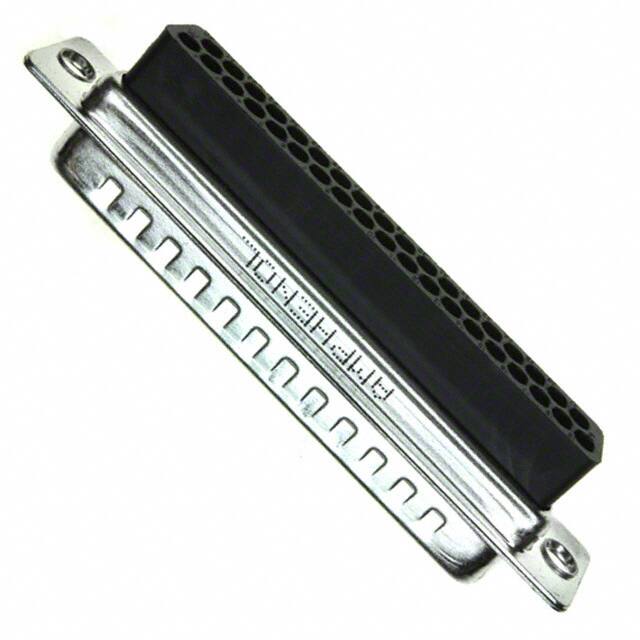

L777-RR-C-37-P

Teknik Özellikler

Option

GENERAL PURPOSE

Shell Material Finish

Steel, Tin Plated

Body Breadth

0.494 inch

Pozisyon Sayısı

37

Filter Feature

NO

Mixed Contacts

NO

ECCN Kodu

EAR99

Reference Standard

UL

Ul Flammability Code

94V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Shell Size Connector Layout

4 DC C

HTS Kodu

8536.69.40.30

Connector Type

Plug for Male Contacts

Insulation Resistance

1000000000Ohm

Flange Feature

Housing/Shell (Unthreaded)

Iec Conformance

NO

Fabrika Tedarik Süresi

5 Weeks

Total Number Of Contacts

37

Mil Conformance

NO

Termination Type

CRIMP

Note

Contacts Not Included

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Montaj Tipi

Free Hanging (In-Line)

Contact Finish Mating

NOT SPECIFIED

Contact Materials

NOT SPECIFIED

Özellikler

Grounding Indents

Empty Shell

NO

Renk

Black

Rated Current Signal

5A

Sıra Sayısı

2

Contact Type

Signal

Contact Resistance

30mOhm

RoHS Durumu

RoHS Compliant

Dielectric Material

Polybutylene Terephthalate (PBT), Glass Filled

Çalışma Sıcaklığı

-55°C~125°C

Mating Contact Pitch

0.109 inch

Seri

RR

Parça Durumu

Active

Shell Finish Thickness

100μin 2.54μm
