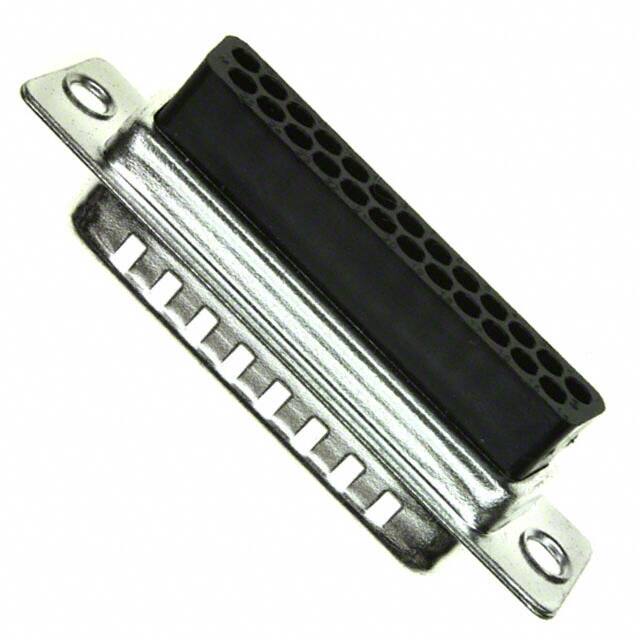

L777-RR-B-25-P

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Dielectric Material

Polybutylene Terephthalate (PBT), Glass Filled

Rated Current Signal

5A

Sıra Sayısı

2

Contact Resistance

30mOhm

Contact Type

Signal

Renk

Black

Empty Shell

NO

Contact Finish Mating

NOT SPECIFIED

Contact Materials

NOT SPECIFIED

Özellikler

Grounding Indents

Din Conformance

NO

Ambalaj

Bulk

Connector Style

D-Sub

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

GLASS FILLED POLYETHYLENE

Shell Finish Thickness

100μin 2.54μm

Body Depth

0.161 inch

Reliability

COMMERCIAL

Mating Contact Pitch

0.109 inch

Seri

RR

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Reference Standard

UL

Filter Feature

NO

Mixed Contacts

NO

Pozisyon Sayısı

25

Option

GENERAL PURPOSE

Body Breadth

0.494 inch

Shell Material Finish

Steel, Tin Plated

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Montaj Tipi

Free Hanging (In-Line)

Mil Conformance

NO

Termination Type

CRIMP

Note

Contacts Not Included

Iec Conformance

NO

Fabrika Tedarik Süresi

5 Weeks

Total Number Of Contacts

25

Flange Feature

Housing/Shell (Unthreaded)
