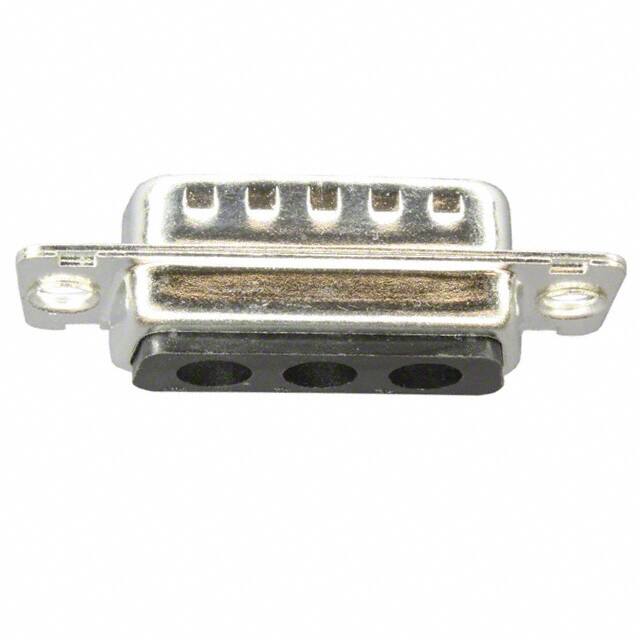

L717TWA3W3P

Teknik Özellikler

Total Number Of Contacts

3

Fabrika Tedarik Süresi

5 Weeks

Note

Contacts Not Included

Kurşunsuz Kodu

yes

Montaj

Free Hanging, Panel

Orientation

Straight

Ul Flammability Code

94V-0

Uzunluk

39mm

Connector Type

Plug for Male Contacts

Mixed Contacts

NO

Number Of Power Positions

3

Option

GENERAL PURPOSE

Reach Svhc

Unknown

Connector Style

D-Sub, Combo

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Supply Voltage Ac

300V

Contact Gender

Male

Seri

TW

Sıra Sayısı

1

Contact Type

Power

Body Material

Metal, Steel

Insulation

Insulated

Contact Materials

Brass

Özellikler

Grounding Indents

Shell Material

Steel

Empty Shell

NO

Montaj Tipi

Free Hanging (In-Line)

Shell Size Connector Layout

2 DA A - 3W3

Flange Feature

Housing/Shell (Unthreaded)

Filter Feature

NO

Terminal

Solder

Reference Standard

UL

Mating Cycles

200

Shell Material Finish

Steel, Tin Plated

Body Breadth

0.488 inch

Number Of Conductors

ONE

Pozisyon Sayısı

3 (Power)

Shell Finish Thickness

100μin 2.54μm

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~155°C
