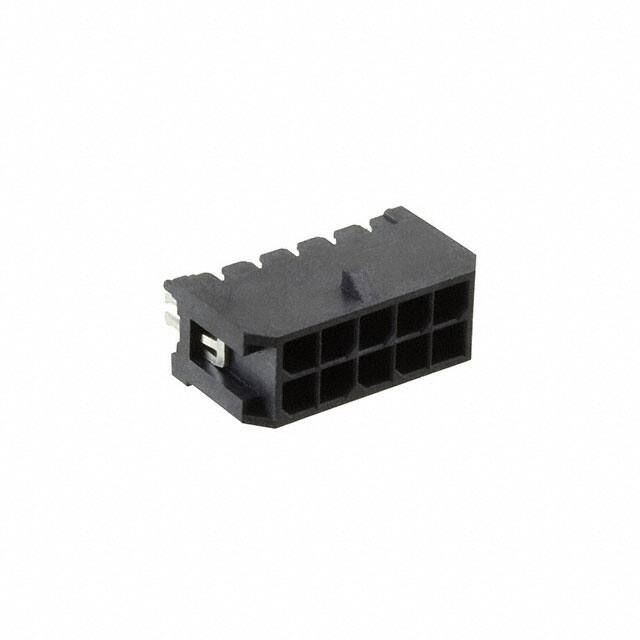

G88MP10102KEU

Teknik Özellikler

Filter Feature

NO

Insulation Color

Black

Fabrika Tedarik Süresi

8 Weeks

Contact Finish Thickness Post

100.0μin 2.54μm

Özellikler

Board Lock

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Ul Flammability Code

94V-0

Shell Material

THERMOPLASTIC LCP

Number Of Positions Loaded

All

Empty Shell

NO

Montaj Tipi

Through Hole

Fastening Type

Locking Ramp

Insulation Height

0.390 9.91mm

Connector Type

Header

Style

Board to Cable/Wire

Row Spacing Mating

0.118 (3.00mm)

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Sıra Sayısı

2

Parça Durumu

Active

Seri

Micro Power

Contact Materials

Copper Alloy

Iec Conformance

NO

Yayın Yılı

2015

Mil Conformance

NO

Din Conformance

NO

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

unknown

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

100.0μin 2.54μm

Contact Length Post

0.126 3.20mm

Terminal

Kinked Pin, Solder

Pitch Mating

0.118 3.00mm

Contact Type

Male Pin

Option

GENERAL PURPOSE

Mixed Contacts

NO

Montaj

Through Hole
