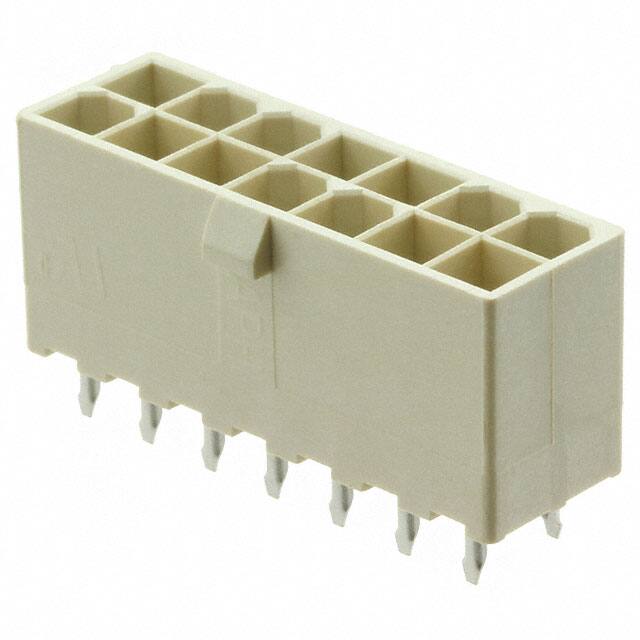

G874D141202CEU

Teknik Özellikler

Number Of Positions Loaded

All

Style

Board to Cable/Wire

Connector Type

Header

Insulation Height

0.504 12.80mm

Fastening Type

Locking Ramp

Montaj Tipi

Through Hole

Contact Finish Mating

Tin

Sıra Sayısı

2

Row Spacing Mating

0.165 (4.20mm)

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Insulation Color

Natural

Contact Finish Thickness Post

100.0μin 2.54μm

Fabrika Tedarik Süresi

8 Weeks

Insulation Materials

Liquid Crystal Polymer (LCP)

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Terminal

Solder

Contact Finish Thickness Mating

100.0μin 2.54μm

Contact Length Post

0.138 3.50mm

Pitch Mating

0.165 4.20mm

Contact Type

Male Pin

Pozisyon Sayısı

14

Montaj

Through Hole

Contact Materials

Brass

Seri

Mini Power

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant
