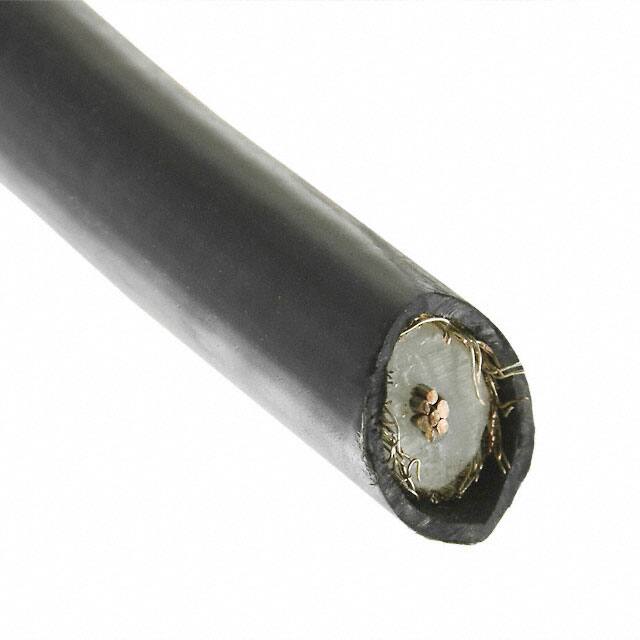

9217 BK002

Teknik Özellikler

Connector Support Type

WIRE AND CABLE

Dielectric Diameter

0.370 (9.40mm)

Conductor Material

Copper, Bare

Vop Velocity Of Propagation

66

Shield Material

Copper, Bare

Cable Types

Coaxial

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Çalışma Sıcaklığı

-20°C~60°C

Dielectric Material

Solid Polyethylene (PE)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2006

Jacket Color

Black

Shield Coverage

95%

Wire Gauge

10 AWG

Cable Group

RG-217

Uzunluk

500.0' 152.40m

RoHS Durumu

ROHS3 Compliant

Empedans

50Ohm

Jacket Insulation Diameter

0.545 (13.84mm)

Parça Durumu

Active

Shield Type

Double Braid

Fabrika Tedarik Süresi

8 Weeks
