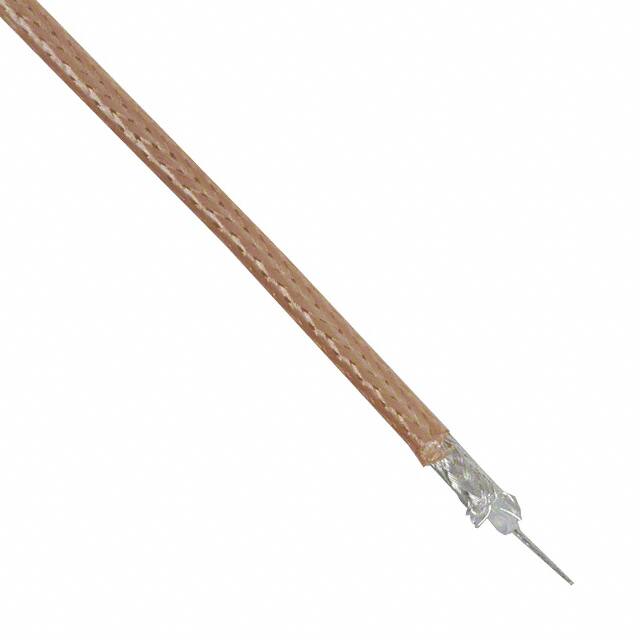

9179B BR002

Teknik Özellikler

Uzunluk

500.0' 152.40m

Jacket Insulation Material

Fluorinated Ethylene-Propylene (FEP)

Cable Types

Coaxial

Dielectric Diameter

0.063 (1.60mm)

Shield Material

Copper, Silver Coated

Shield Type

Braid

Wire Gauge

30 AWG (0.06mm2)

Vop Velocity Of Propagation

70

Dielectric Material

Tetrafluoroethylene (TFE)

Jacket Color

Brown

Parça Durumu

Active

Conductor Strand

7 Strands / 38 AWG

Conductor Material

Steel, Silver Coated

Fabrika Tedarik Süresi

34 Weeks

Cable Group

RG-179B

Empedans

75Ohms

RoHS Durumu

ROHS3 Compliant

Shield Coverage

93%

Nem Hassasiyeti (MSL)

1 (Unlimited)

Jacket Insulation Diameter

0.100 (2.54mm)
