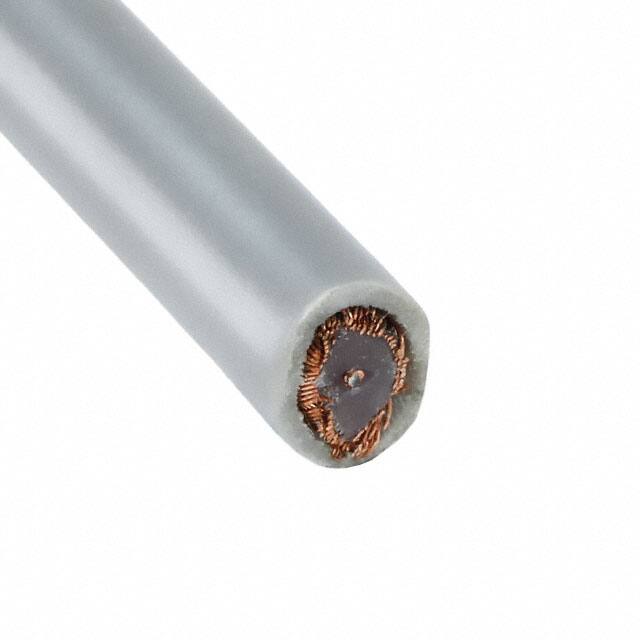

9059 SL005

Teknik Özellikler

Empedans

73Ohm

Cable Group

RG-59

Connector Support Type

WIRE AND CABLE

Conductor Material

Steel, Copper Coated

Shield Type

Braid

Usage

Network

Çalışma Sıcaklığı

-20°C~80°C

Dielectric Diameter

0.146 (3.71mm)

Shield Coverage

95%

Jacket Insulation Diameter

0.242 (6.15mm)

Parça Durumu

Active

Jacket Color

Slate

Yayın Yılı

2006

RoHS Durumu

ROHS3 Compliant

Uzunluk

100.0' 30.48m

Conductor Strand

Solid

Wire Gauge

22 AWG

Cable Types

Coaxial

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Shield Material

Copper, Bare

Fabrika Tedarik Süresi

8 Weeks

Dielectric Material

Solid Polyethylene (PE)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Vop Velocity Of Propagation

66
