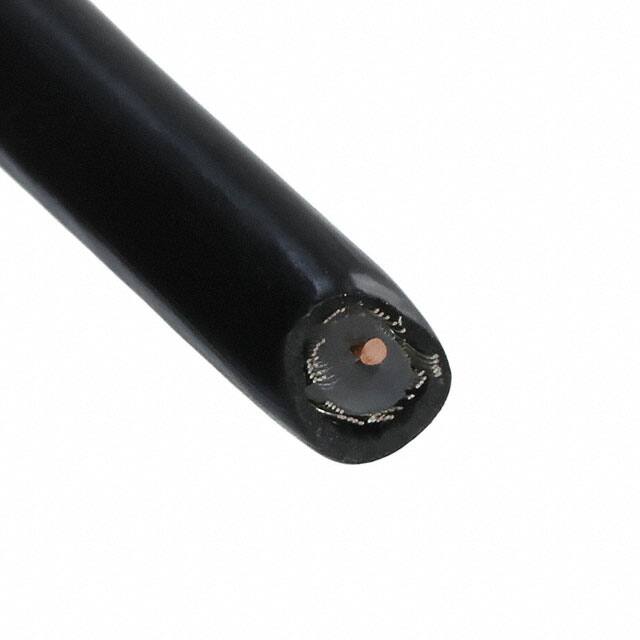

9058X BK005

Teknik Özellikler

Cable Group

RG-58

Vop Velocity Of Propagation

66

Shield Type

Braid

Yayın Yılı

2006

Connector Support Type

WIRE AND CABLE

Shield Material

Copper, Tinned

Nem Hassasiyeti (MSL)

1 (Unlimited)

Jacket Color

Black

RoHS Durumu

ROHS3 Compliant

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Conductor Strand

Solid

Cable Types

Coaxial

Jacket Insulation Diameter

0.195 (4.95mm)

Dielectric Material

Solid Polyethylene (PE)

Shield Coverage

95%

Dielectric Diameter

0.033 (0.84mm)

Parça Durumu

Active

Usage

Network

Uzunluk

100.0' 30.48m

Wire Gauge

20 AWG

Conductor Material

Copper, Bare

Empedans

51.5Ohm

Fabrika Tedarik Süresi

8 Weeks

Çalışma Sıcaklığı

-20°C~60°C
