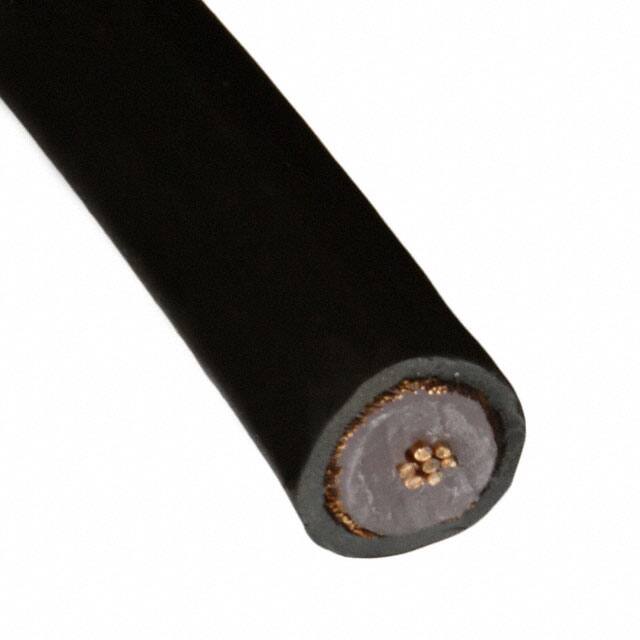

9008 BK005

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Uzunluk

100.0' 30.48m

Çalışma Sıcaklığı

-20°C~60°C

Shield Material

Copper, Bare

Conductor Material

Copper, Bare

Conductor Strand

7 Strands / 21 AWG

Shield Coverage

96%

Cable Types

Coaxial

Usage

Network

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Dielectric Material

Solid Polyethylene (PE)

Shield Type

Braid

Cable Group

RG-8

Jacket Color

Black

Dielectric Diameter

0.285 (7.24mm)

Parça Durumu

Active

Jacket Insulation Diameter

0.405 (10.29mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Vop Velocity Of Propagation

66

Empedans

52Ohm

Yayın Yılı

2001

Wire Gauge

13 AWG (2.88mm2)

Connector Support Type

WIRE AND CABLE

Fabrika Tedarik Süresi

8 Weeks
