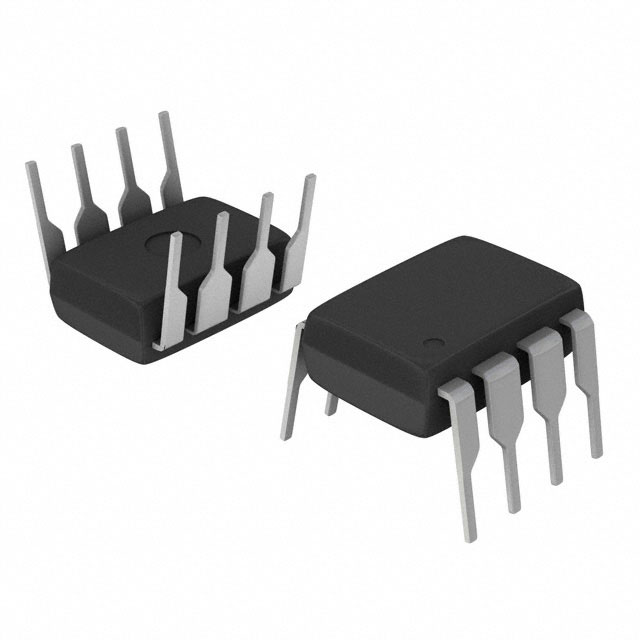

AOP605

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Power Dissipation

2.5W

Input Capacitance Ciss Max Vds

820pF @ 15V

Max Power Dissipation

2.5W

Montaj

Through Hole

Parça Durumu

Obsolete

Montaj Tipi

Through Hole

Number Of Elements

2

Vgsth Max Id

3V @ 250μA

Pin Sayısı

8

Ambalaj

Tube

Gate To Source Voltage Vgs

20V

RoHS Durumu

RoHS Compliant

Fet Feature

Logic Level Gate

Rds On Max Id Vgs

28m Ω @ 7.5A, 10V

REACH Uyumluluk Kodu

unknown

Çalışma Sıcaklığı

-55°C~150°C TJ

Drain To Source Voltage Vdss

30V

Kılıf / Paket

8-DIP (0.300, 7.62mm)

Fet Type

N and P-Channel

Gate Charge Qg Max Vgs

16.6nC @ 4.5V
