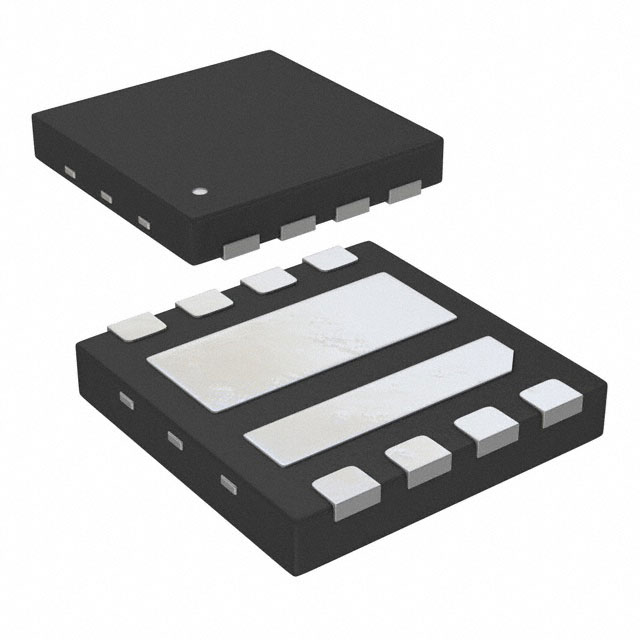

AON7932

Teknik Özellikler

Fet Type

2 N-Channel (Half Bridge)

Gate Charge Qg Max Vgs

6.5nC @ 10V

Kılıf / Paket

8-WDFN Exposed Pad

Drain To Source Voltage Vdss

30V

Çalışma Sıcaklığı

-55°C~150°C TJ

Rds On Max Id Vgs

20m Ω @ 6.6A, 10V

Fet Feature

Logic Level Gate

RoHS Durumu

RoHS Compliant

Pin Sayısı

8

Ambalaj

Tape & Reel (TR)

Vgsth Max Id

2.4V @ 250μA

Number Of Elements

2

Montaj Tipi

Surface Mount

Yayın Yılı

2011

Parça Durumu

Obsolete

Montaj

Surface Mount

Max Power Dissipation

1.4W

Input Capacitance Ciss Max Vds

460pF @ 15V

Continuous Drain Current Id

8.1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Continuous Drain Id25

6.6A 8.1A
